STF202-22T1G - onsemi

Description: Provides USB Line Termination, Filtering and ESD Protection; Single IC Offers Cost Savings by Replacing 3 Resistors, 2 Capacitors, and 5 TVs diodes; Bi-directional EMI Filtering Prevents Noise from Entering/Leaving the System; IEC61000-4-2 ESD Protection for USB Port; Flexible Pull-down or Pull-up Line Termination to Meet USB 1.1 Low Speed and High Speed Specification; TSOP-6 Package Minimizes PCB Space; Integrated Circuit Increases System Reliability versus Discrete Component Implementation; TVs Devices Pr

Download STF202-22T1G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

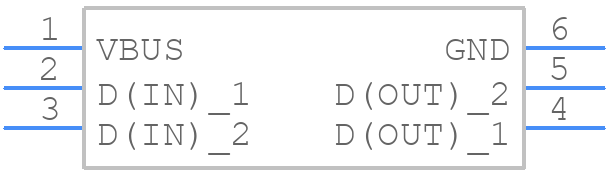

Symbol
STF202-22T1G - onsemi - PCB symbol
click to zoom
PCB Footprints
STF202-22T1G - onsemi PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TSOP-6 CASE318G-02 ISSUE V
click to zoom
3D Models
STF202-22T1G - onsemi - 3D model - SOT23 (6-Pin) - TSOP-6 CASE318G-02 ISSUE V
click to zoom

STF202-22T1G Details

  • Manufacturer Part Number:

    STF202-22T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSOP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    318G-02

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Approvals:

    IEC

  • Capacitance:

    68 µF

  • DC Resistance-Max:

    24 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    1.1 mm

  • JESD-609 Code:

    e3

  • Length:

    3.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Terminal Finish:

    MATTE TIN

  • Width:

    1.7 mm

STF202-22T1G Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the package to connect the thermal pad to the copper area.
  • Ensure that the device is operated within the recommended junction temperature (Tj) range of -40°C to 150°C. Implement a thermal management system, such as a heat sink or fan, to keep the device temperature below the maximum rating. Monitor the device's thermal performance and adjust the system design as needed.
  • The STF202-22T1G has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
  • Yes, the STF202-22T1G is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q101 standard for automotive applications and is suitable for use in harsh environments.
  • The recommended soldering conditions are: peak temperature of 260°C, soldering time of 10-30 seconds, and a maximum of 3 reflows. Use a solder with a melting point of 217°C to 221°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STF202-22T1G Overview

Use the download button to access the STF202-22T1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STF20, or try a keyword search, such as Data Line Filters
