STF203-22.TCT - SEMTECH

Description: ESD Suppressors / TVS Diodes IPD TVS, USB, 22 OHM, 3K T&R

Download STF203-22.TCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

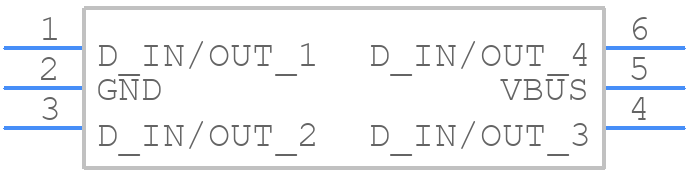

Symbol
STF203-22.TCT - SEMTECH - PCB symbol
click to zoom
PCB Footprints
STF203-22.TCT - SEMTECH PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SC70 6L-5
click to zoom
3D Models
STF203-22.TCT - SEMTECH - 3D model - SOT23 (6-Pin) - SC70 6L-5
click to zoom

STF203-22.TCT Details

  • Manufacturer Part Number:

    STF203-22.TCT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    7

  • Capacitance:

    47 µF

  • DC Resistance-Max:

    24 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    1.1 mm

  • JESD-609 Code:

    e3

  • Length:

    2.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    90 OHM Ω

  • Packing Method:

    TAPE AND REEL

  • Rated Voltage:

    5.25 V

  • Terminal Finish:

    Matte Tin (Sn)

  • Width:

    1.35 mm

STF203-22.TCT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance matching to minimize signal reflections.
  • Ensure good thermal conductivity by using a heat sink or thermal pad on the exposed pad of the QFN package. Also, avoid overheating during soldering and reflow processes.
  • The recommended input impedance is 50 ohms. Impedance matching is crucial to achieve optimal performance and minimize signal reflections.
  • Yes, but impedance matching is required to ensure optimal performance. Consult the datasheet and application notes for guidance on impedance matching networks.
  • Use a combination of visual inspection, signal integrity analysis, and debugging tools like oscilloscopes and spectrum analyzers to identify and isolate issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STF203-22.TCT Overview

Use the download button to access the STF203-22.TCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STF20, or try a keyword search, such as Data Line Filters
