STF21N90K5 - STMicroelectronics

Description: N-channel 900 V, 0.25 Ω typ., 18.5 A Zener-protected SuperMESH™ 5 Power MOSFET in a D²PAK, TO-220FP, TO-220 and TO-247 packages

Download STF21N90K5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STF21N90K5 - STMicroelectronics - PCB symbol
click to zoom

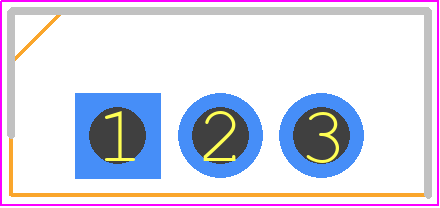

PCB Footprints
STF21N90K5 - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-220FP HEIGHT 4.6
click to zoom
3D Models
STF21N90K5 - STMicroelectronics - 3D model - Transistor Outline, Vertical - TO-220FP HEIGHT 4.6
click to zoom

STF21N90K5 Details

  • Manufacturer Part Number:

    STF21N90K5

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-220AB

  • Package Description:

    ROHS COMPLIANT, TO-220FP, 3 PIN

  • Pin Count:

    3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4

  • Avalanche Energy Rating (Eas):

    170 mJ

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    900 V

  • Drain Current-Max (ID):

    17 A

  • Drain-source On Resistance-Max:

    0.299 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    10 pF

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    40 W

  • Pulsed Drain Current-Max (IDM):

    68 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STF21N90K5 Frequently Asked Questions (FAQs)

  • The maximum junction temperature that the STF21N90K5 can withstand is 175°C.
  • To ensure the STF21N90K5 is properly biased, make sure to follow the recommended biasing scheme outlined in the datasheet, and ensure that the gate-source voltage (Vgs) is within the recommended range of 2-5V.
  • For optimal thermal performance, it is recommended to use a multi-layer PCB with a thermal pad connected to a heat sink or a thermal interface material. Additionally, ensure that the PCB layout is designed to minimize thermal resistance and maximize heat dissipation.
  • To protect the STF21N90K5 from overvoltage and overcurrent conditions, use a voltage regulator or a voltage limiter to regulate the input voltage, and consider adding overcurrent protection devices such as fuses or current limiters.
  • The recommended gate drive circuits and components for the STF21N90K5 include a gate driver IC, a bootstrap capacitor, and a gate resistor. The specific components and circuit topology will depend on the application and switching frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STF21N90K5 Overview

Use the download button to access the STF21N90K5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STF21, or try a keyword search, such as Power Field-Effect Transistors
