STG3684AUTR - STMicroelectronics

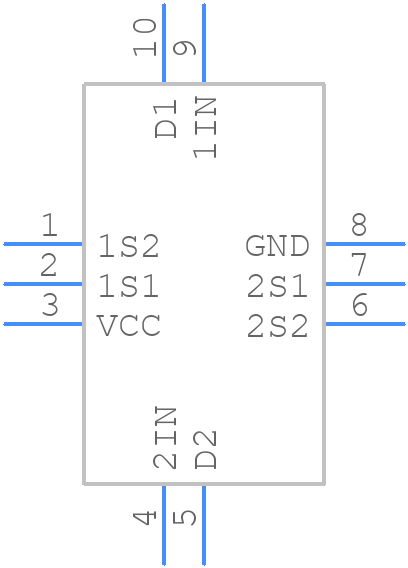

STG3684AUTR Details

• Manufacturer Part Number:

  STG3684AUTR

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFN

• Package Description:

  QFN-10

• Pin Count:

  10

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Additional Feature:

  2-CHANNEL MUX/DEMUX

• Analog IC - Other Type:

  SPDT

• JESD-30 Code:

  R-XQCC-N10

• JESD-609 Code:

  e4

• Length:

  1.8 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  1

• Number of Functions:

  2

• Number of Terminals:

  10

• Off-state Isolation-Nom:

  66 dB

• On-state Resistance Match-Nom:

  0.1 Ω

• On-state Resistance-Max (Ron):

  0.7 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VQCCN

• Package Equivalence Code:

  SOLCC10,.08,16

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.55 mm

• Supply Voltage-Max (Vsup):

  4.3 V

• Supply Voltage-Min (Vsup):

  1.65 V

• Supply Voltage-Nom (Vsup):

  2.3 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  30 ns

• Switch-on Time-Max:

  85 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.4 mm
