STG3696EQTR - STMicroelectronics

Description: Low voltage dual SPDT switch for USB/audio signal switching with 8 kV ESD protection

Download STG3696EQTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

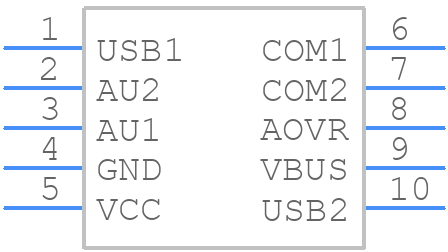

Symbol
STG3696EQTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STG3696EQTR - STMicroelectronics PCB footprint - Other - Other - STG3696EQTR-1
click to zoom
3D Models
STG3696EQTR - STMicroelectronics - 3D model - Other - STG3696EQTR-1
click to zoom

STG3696EQTR Details

  • Manufacturer Part Number:

    STG3696EQTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    1.8 X 1.4 MM, 0.50 MM HEIGHT, 0.40 MM PITCH, GREEN, QFN-10

  • Pin Count:

    10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-XQCC-N10

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    65 dB

  • On-state Resistance-Max (Ron):

    5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC10,.06X.07,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    5000 ns

  • Switch-on Time-Max:

    85000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.4 mm

STG3696EQTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4571, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using thermal interface materials, heat sinks, and proper PCB design to minimize thermal resistance.
  • Monitor the output voltage, output current, input voltage, and junction temperature (Tj) to ensure the device operates within the recommended specifications. Also, keep an eye on the power dissipation, especially during high-load or high-temperature conditions.
  • The STG3696EQTR has built-in OVP and UVP features. For OVP, the device will shut down if the input voltage exceeds the recommended maximum value. For UVP, the device will shut down if the input voltage falls below the recommended minimum value. Ensure that your design includes proper voltage monitoring and protection circuitry to prevent damage or malfunction.
  • Choose input capacitors with low equivalent series resistance (ESR) and high ripple current capability to minimize voltage ripple and ensure stable operation. A minimum of 10uF to 22uF ceramic or film capacitors are recommended, depending on the specific application requirements.
