STG3699BVTR - STMicroelectronics

Description: 4 Circuit IC Switch 2:1 500mOhm 16-QFN (2.6x1.8) , 1.65V ~ 4.3V , -72dB @ 100kHz , -55°C ~ 125°C (TA)

Download STG3699BVTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

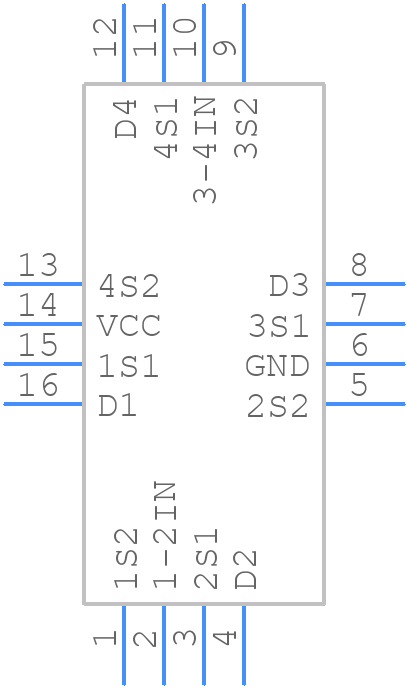

Symbol
STG3699BVTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STG3699BVTR - STMicroelectronics PCB footprint - Other - Other - QFN16L (2.6 x 1.8 mm)_2026
click to zoom
3D Models
STG3699BVTR - STMicroelectronics - 3D model - Other - QFN16L (2.6 x 1.8 mm)_2026
click to zoom

STG3699BVTR Details

  • Manufacturer Part Number:

    STG3699BVTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    2.60 X 1.80 MM, LEAD FREE, QFN-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    2.6 mm

  • Normal Position:

    NO/NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    64 dB

  • On-state Resistance Match-Nom:

    0.15 Ω

  • On-state Resistance-Max (Ron):

    1.5 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.07X.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    4.3 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    30 ns

  • Switch-on Time-Max:

    55 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    1.8 mm

STG3699BVTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
  • Although the datasheet specifies the recommended operating conditions, it's essential to note that the maximum allowed voltage on the input pins is 5.5V, which is higher than the recommended VCC of 3.3V. However, it's recommended to stay within the recommended operating conditions to ensure reliable operation.
  • STMicroelectronics recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input lines to protect the device from electrostatic discharge. Additionally, follow proper handling and storage procedures to prevent ESD damage.
  • STMicroelectronics recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STG3699BVTR Overview

Use the download button to access the STG3699BVTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STG36, or try a keyword search, such as Multiplexers or Switches
