STG3820BJR - STMicroelectronics

Description: Low voltage high bandwidth quad DPDT switch

Download STG3820BJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

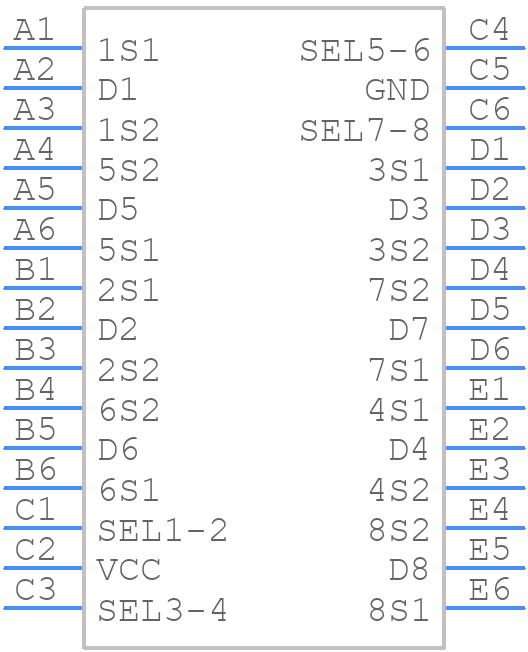

Symbol
STG3820BJR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STG3820BJR - STMicroelectronics PCB footprint - BGA - BGA - .-- Mechanical data for Flip Chip 30 (2.0 x 2.4 x 0.625 mm) - 0.4 mm pitch
click to zoom
3D Models
STG3820BJR - STMicroelectronics - 3D model - BGA - .-- Mechanical data for Flip Chip 30 (2.0 x 2.4 x 0.625 mm) - 0.4 mm pitch
click to zoom

STG3820BJR Details

  • Manufacturer Part Number:

    STG3820BJR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    2 X 2.40 MM, 0.625 MM HEIGHT, 0.40 MM PITCH, ROHS COMPLIANT, FLIP-CHIP-30

  • Pin Count:

    30

  • Country Of Origin:

    France

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    DPDT

  • JESD-30 Code:

    R-PBGA-B30

  • Number of Functions:

    4

  • Number of Terminals:

    30

  • On-state Resistance-Max (Ron):

    7.3 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA30,5X6,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switch-on Time-Max:

    23 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

STG3820BJR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
  • Implement a thermal management strategy, such as a heat sink or thermal interface material, and ensure a maximum junction temperature (Tj) of 150°C. Monitor the device's thermal status using the thermal monitoring pin (TMP).
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for the input filter. The capacitor should be placed as close as possible to the VIN pin and have a low ESR (Equivalent Series Resistance) to minimize voltage ripple.
  • Use a 2nd-order LC filter with a 10uH to 22uH inductor and a 10uF to 22uF capacitor. The output filter should be designed to minimize the output voltage ripple and ensure a stable output voltage.
  • Keep the high-frequency switching nodes (e.g., LX, VIN, and VOUT) as short and direct as possible. Use a star-point connection for the switching nodes and avoid routing them near sensitive analog signals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STG3820BJR Overview

Use the download button to access the STG3820BJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STG38, or try a keyword search, such as Multiplexers or Switches
