STG5592QTR - STMicroelectronics

Description: Low voltage high bandwidth quad SPDT switch

Download STG5592QTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

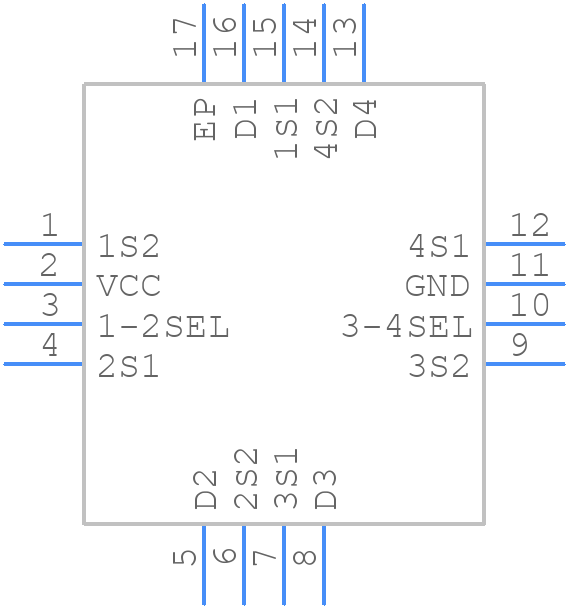

STG5592QTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STG5592QTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - STG5592QTR
click to zoom
3D Models
STG5592QTR - STMicroelectronics - 3D model - Quad Flat No-Lead - STG5592QTR
click to zoom

STG5592QTR Details

  • Manufacturer Part Number:

    STG5592QTR

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-XQCC-N16

  • Length:

    2.6 mm

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    54 dB

  • On-state Resistance Match-Nom:

    0.13 Ω

  • On-state Resistance-Max (Ron):

    16 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.07X.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Seated Height-Max:

    0.55 mm

  • Signal Current-Max:

    0.128 A

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    22 ns

  • Switch-on Time-Max:

    40 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    1.8 mm

STG5592QTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a thermal pad layout with a minimum of 2 oz copper thickness, and a thermal via array with a minimum of 10 vias, 0.3 mm in diameter, and 1.5 mm pitch. A dedicated thermal pad on the PCB is also recommended.
  • To ensure reliable operation, it's recommended to follow a controlled power-up and power-down sequence, with a minimum rise and fall time of 1 ms. Additionally, ensure that the input voltage (VIN) is within the recommended operating range during power-up and power-down.
  • The maximum allowed voltage on the enable pin (EN) is 6 V. Exceeding this voltage may cause damage to the device.
  • Yes, the STG5592QTR is rated for operation up to 150°C (Tj). However, it's essential to ensure that the device is properly heatsinked and that the maximum junction temperature (Tj) is not exceeded.
  • STMicroelectronics recommends using a 10 μF, X5R or X7R, 16 V or higher-rated ceramic capacitor as the input capacitor (CIN). This ensures optimal performance and stability.
