- Part Number STGAP1S
- Manufacturer STMicroelectronics
- Pin Count 24
- Part Category Transistor
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO-24
- Released Date Oct 30, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
STGAP1S Details
-
Manufacturer Part Number:
STGAP1S
-
Part Life Cycle Code:
Obsolete
-
Package Description:
SOP-24
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
High Side Driver:
YES
-
Input Characteristics:
STANDARD
-
Interface IC Type:
BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER
-
JESD-30 Code:
R-PDSO-G24
STGAP1S Frequently Asked Questions (FAQs)
-
The maximum operating frequency of STGAP1S is 100 MHz.
-
To ensure reliable operation of STGAP1S in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range.
-
To minimize EMI, it is recommended to follow good PCB design practices, such as using a solid ground plane, keeping signal traces short and away from the edge of the board, and using shielding and filtering as necessary.
-
To troubleshoot issues with STGAP1S, it is recommended to follow a systematic approach, such as checking the power supply, verifying the clock signal, and using debugging tools such as oscilloscopes and logic analyzers to identify the root cause of the issue.
-
To ensure EMC with STGAP1S, it is recommended to follow good design practices, such as using shielding, filtering, and grounding, and ensuring that the device is operated within its specified frequency range and power supply voltage.
Trust Checks
Community Provided
System Verified
Community Approved
STGAP1S Overview

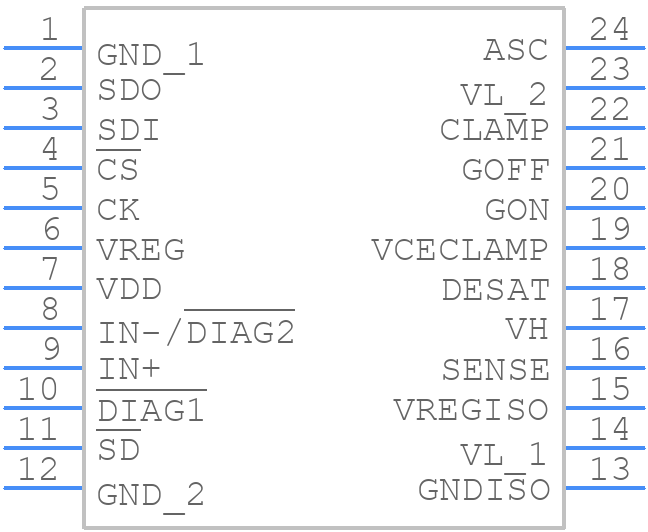

Use the download button to access the STGAP1S schematic symbol, PCB footprint, and 3D model.
