STGAP2HDMTR footprint, schematic symbol and 3D model by STMicroelectronics

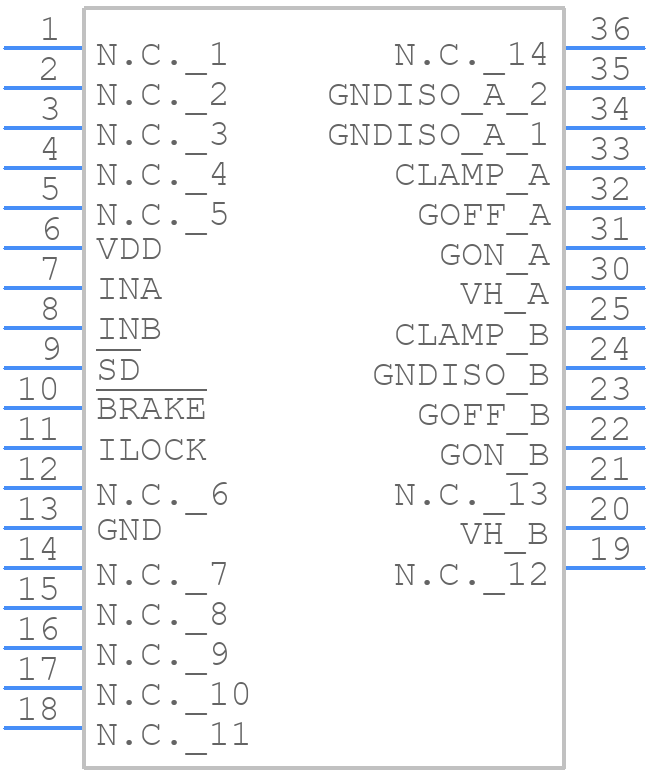

Symbol

click to zoom

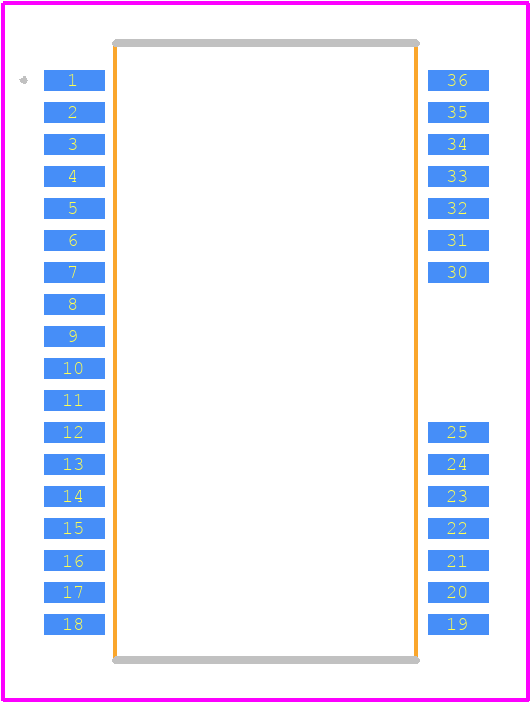

PCB Footprints

STGAP2HDMTR - STMicroelectronics PCB footprint - Other - Other - SSOP 32 LEAD 300 MIL PKG .0315 P

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STGAP2HDMTR
Part Number STGAP2HDMTR
Manufacturer STMicroelectronics
Pin Count 32
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SSOP 32 LEAD 300 MIL PKG .0315 P
Released Date Nov 5, 2021
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

STGAP2HDMTR Details

Manufacturer Part Number:
STGAP2HDMTR
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SOP-36/32
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
25 Weeks
Manufacturer:
STMicroelectronics
YTEOL:
14.45
High Side Driver:
YES
Input Characteristics:
STANDARD
Interface IC Type:
BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 Code:
R-PDSO-G32
JESD-609 Code:
e3
Length:
15.4 mm
Moisture Sensitivity Level:
3
Number of Functions:
2
Number of Terminals:
32
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
STANDARD
Output Peak Current Limit-Nom:
4 A
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SOP32/36,.4,32
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
2.65 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
3.1 V
Supply Voltage-Nom:
5 V
Supply Voltage1-Max:
26 V
Supply Voltage1-Nom:
15 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
DUAL
Turn-off Time:
0.09 µs
Turn-on Time:
0.09 µs
Width:
7.5 mm

STGAP2HDMTR Frequently Asked Questions (FAQs)

STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal pad connected to the ground plane to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended for the thermal pad.
To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, including a proper thermal pad design, adequate heat sinking, and a maximum junction temperature (Tj) of 150°C. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V.
The STGAP2HDMTR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
The recommended power-up sequence is to apply the power supply voltage (VCC) before applying the input signals. This ensures that the internal voltage regulators are properly initialized before the device starts operating.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

STGAP2HDMTR Overview

Use the download button to access the STGAP2HDMTR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like STGAP, or try a keyword search, such as MOSFET Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
