STGAP2SACTR - STMicroelectronics

Description: Automotive grade galvanically isolated 4 A single gate driver, 1200 V 3.3 V, 5 V SO-8

Download STGAP2SACTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

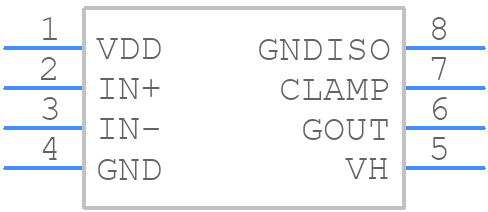

STGAP2SACTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STGAP2SACTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8_2025
click to zoom
3D Models
STGAP2SACTR - STMicroelectronics - 3D model - Small Outline Packages - SO-8_2025
click to zoom

STGAP2SACTR Details

  • Manufacturer Part Number:

    STGAP2SACTR

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGAP2SACTR Overview

Use the download button to access the STGAP2SACTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGAP, or try a keyword search, such as MOSFET Drivers
