STGAP2SCM - STMicroelectronics

Description: Galvanically isolated 4 A single gate driver

Download STGAP2SCM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

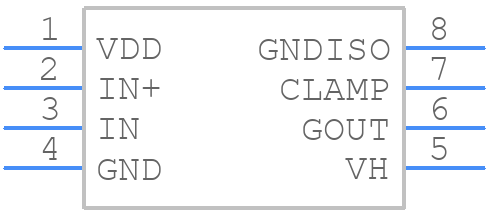

Symbol
STGAP2SCM - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STGAP2SCM - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8 package-14
click to zoom
3D Models
STGAP2SCM - STMicroelectronics - 3D model - Small Outline Packages - SO-8 package-14
click to zoom

STGAP2SCM Details

  • Manufacturer Part Number:

    STGAP2SCM

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-07-24

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • High Side Driver:

    NO

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.1 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    26 V

  • Supply Voltage1-Min:

    9.6 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.12 µs

  • Turn-on Time:

    0.12 µs

  • Width:

    3.9 mm

STGAP2SCM Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The STGAP2SCM can be configured for different galvanic isolation voltage levels by selecting the appropriate voltage rating for the VISO pin. The device can support isolation voltages up to 1700 Vrms, and the specific configuration depends on the application requirements. Refer to the application note AN5323 for more details.
  • The STGAP2SCM supports data transfer rates up to 100 Mbps, making it suitable for high-speed applications such as industrial automation, medical devices, and automotive systems.
  • The STGAP2SCM is designed to handle common-mode transients and EMI through its integrated electromagnetic interference filter (EMIF) and common-mode choke. These features help to reduce electromagnetic emissions and improve the device's immunity to external interference.
  • The STGAP2SCM is certified to meet various safety standards, including IEC 60601-1 for medical devices, IEC 61010-1 for industrial automation, and ISO 26262 for automotive systems. It also complies with relevant regulations such as UL 1577 and CSA C22.2 No. 60601-1.
