STGAP2SICD - STMicroelectronics

STGAP2SICD Details

• Manufacturer Part Number:

  STGAP2SICD

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

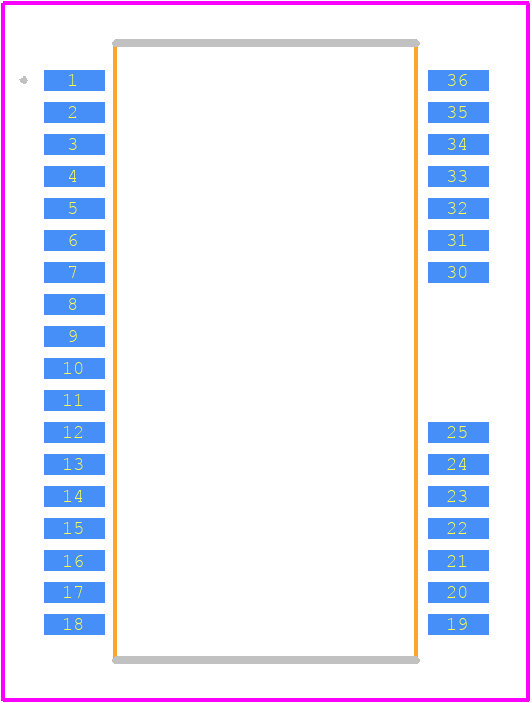

• Package Description:

  SOIC-36/32 PIN

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  25 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  14.45

• High Side Driver:

  YES

• Input Characteristics:

  STANDARD

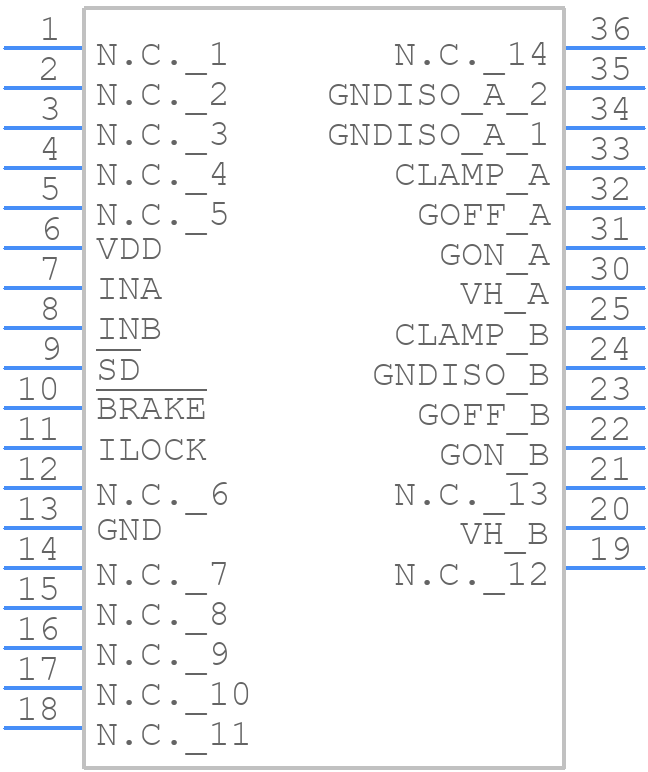

• Interface IC Type:

  BUFFER OR INVERTER BASED MOSFET DRIVER

• JESD-30 Code:

  R-PDSO-G32

• Length:

  15.4 mm

• Number of Functions:

  2

• Number of Terminals:

  32

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Peak Current Limit-Nom:

  4 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LSOP

• Package Equivalence Code:

  SOP32/36,.4,32

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, LOW PROFILE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3.1 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  26 V

• Supply Voltage1-Min:

  16.4 V

• Supply Voltage1-Nom:

  18 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Turn-off Time:

  0.09 µs

• Turn-on Time:

  0.09 µs

• Width:

  7.5 mm
