STGAP2SICDTR - STMicroelectronics

Description: Galvanically isolated 4 A dual gate driver

Download STGAP2SICDTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

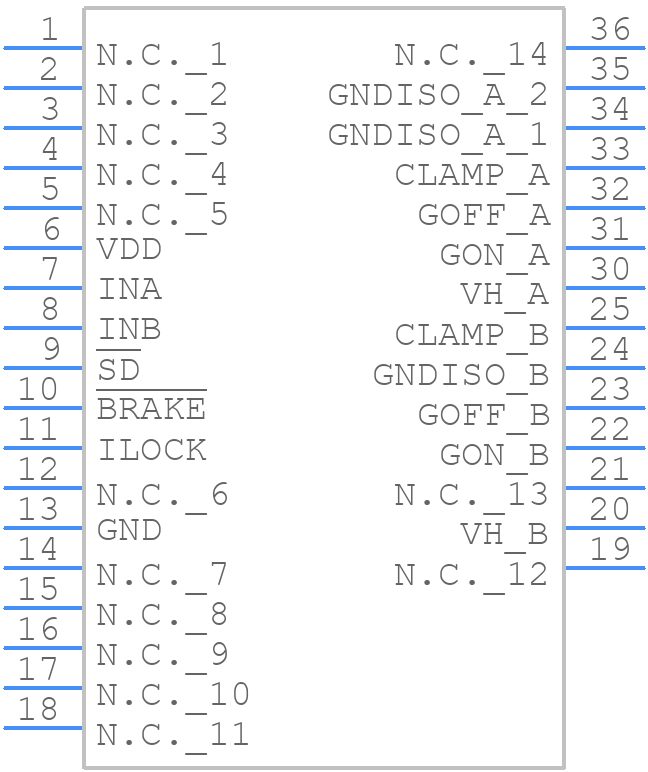

STGAP2SICDTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STGAP2SICDTR - STMicroelectronics PCB footprint - Other - Other - STGAP2SICDTR-2
click to zoom
3D Models
STGAP2SICDTR - STMicroelectronics - 3D model - Other - STGAP2SICDTR-2
click to zoom

STGAP2SICDTR Details

  • Manufacturer Part Number:

    STGAP2SICDTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-36/32 PIN

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14.45

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G32

  • Length:

    15.4 mm

  • Number of Functions:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Equivalence Code:

    SOP32/36,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.1 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    26 V

  • Supply Voltage1-Min:

    16.4 V

  • Supply Voltage1-Nom:

    18 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.09 µs

  • Turn-on Time:

    0.09 µs

  • Width:

    7.5 mm

STGAP2SICDTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5758, which includes guidelines for thermal management, decoupling, and signal routing to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor values depend on the input voltage, output voltage, and switching frequency. A general guideline is to use a minimum of 10uF ceramic capacitors with a voltage rating of at least 1.5 times the input voltage. However, it's recommended to consult the application note AN5758 and perform simulations to determine the optimal capacitor values for your specific design.
  • The STGAP2SICDTR is rated for operation up to 150°C ambient temperature, but it's recommended to derate the device for reliable operation. A general guideline is to limit the ambient temperature to 125°C or lower to ensure a minimum of 10 years of operation without significant degradation.
  • To ensure EMC compliance, follow the guidelines in the application note AN5758, which includes recommendations for PCB layout, component selection, and shielding. Additionally, perform EMC testing and simulation to validate your design and ensure compliance with relevant standards such as IEC 61000-4-2 and IEC 61000-4-4.
  • The STGAP2SICDTR has a high power density, so effective thermal management is crucial. A recommended strategy is to use a thermal pad on the bottom of the device, connect it to a heat sink or a thermal interface material (TIM), and ensure good airflow around the device. Consult the application note AN5758 for more detailed guidelines and thermal simulation tools.
