STK11C68-SF45 - Infineon

Description: Stock

Download STK11C68-SF45 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this STK11C68-SF45 model

Email notifications will be applied after download.

Send part feedback

Symbol

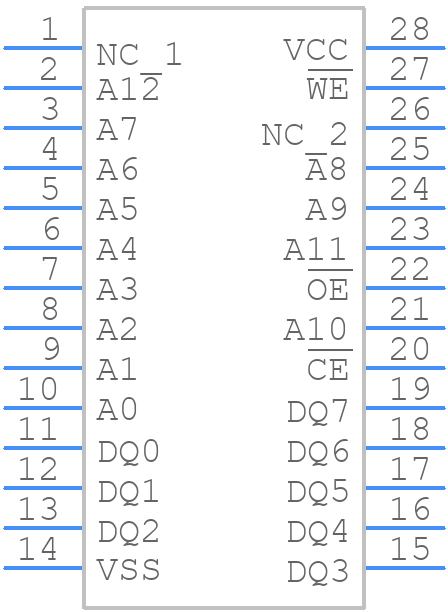

STK11C68-SF45 - Infineon - PCB symbol

PCB Footprints

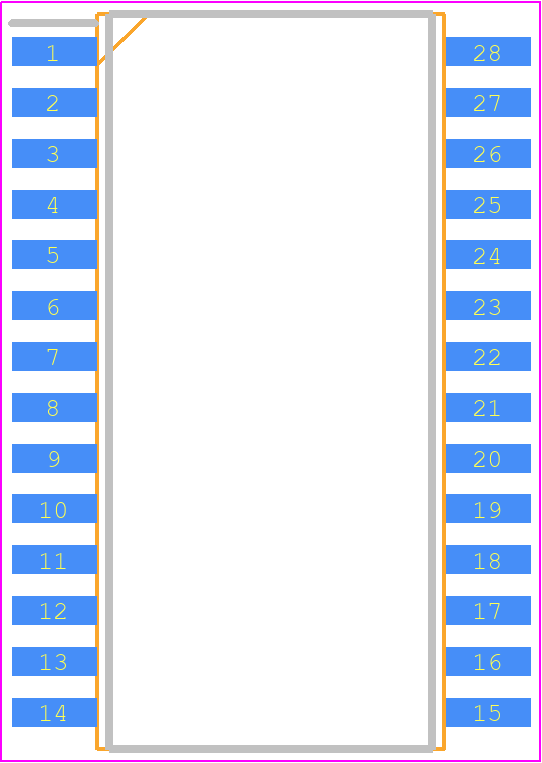

STK11C68-SF45 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 28 pin SOIC S21hkd

3D Models

STK11C68-SF45 - Infineon - 3D model - Small Outline Packages - 28 pin SOIC S21hkd

Datasheet Download Datasheet
Stock & Prices Price & Stock for STK11C68-SF45
Part Number STK11C68-SF45
Manufacturer Infineon
Pin Count 28
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 28 pin SOIC S21hkd
Released Date Apr 29, 2023
Last Modified Date Jan 25, 2024 9:25 PM UTC
Pinout / Pin List Click Here (Member Only)

STK11C68-SF45 Details

Manufacturer Part Number:
STK11C68-SF45
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

STK11C68-SF45 Overview

Use the download button to access the STK11C68-SF45 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like STK11, or try a keyword search, such as SRAMs
