STK22C48-SF45I - SIMTEK CORP

STK22C48-SF45I Details

• Manufacturer Part Number:

  STK22C48-SF45I

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

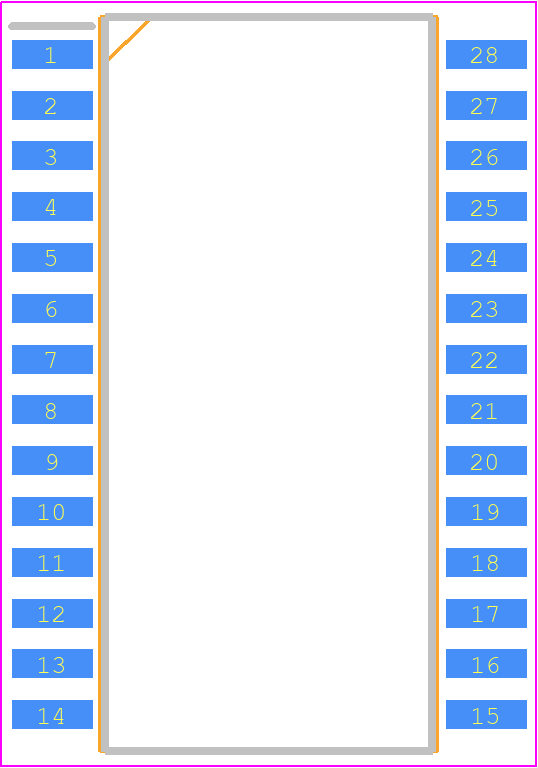

• Package Description:

  0.350 INCH, PLASTIC, SOIC-28

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.41

• Manufacturer:

  Simtek Corporation

• Access Time-Max:

  45 ns

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e3

• Length:

  18.085 mm

• Memory Density:

  16384 bit

• Memory IC Type:

  NON-VOLATILE SRAM

• Memory Width:

  8

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  28

• Number of Words:

  2048 words

• Number of Words Code:

  2000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  2KX8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP28,.5

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.54 mm

• Standby Current-Max:

  0.0015 A

• Supply Current-Max:

  0.065 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  8.765 mm
