STK22N6F3 Details
-
Manufacturer Part Number:
STK22N6F3
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT, POLARPAK-10
-
Pin Count:
10
-
ECCN Code:
EAR99
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Additional Feature:
ULTRA-LOW RESISTANCE
-
Avalanche Energy Rating (Eas):
800 mJ
-
Case Connection:
SOURCE
-
Configuration:
SINGLE WITH BUILT-IN DIODE
STK22N6F3 Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the STK22N6F3 is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -40°C to 125°C for optimal performance and reliability.
-
To ensure proper biasing, follow the recommended operating conditions and biasing schemes outlined in the datasheet. Additionally, make sure to provide a stable voltage supply, and use a suitable gate driver circuit to minimize ringing and ensure proper switching.
-
The recommended gate resistance value for the STK22N6F3 is typically in the range of 1-10 ohms, depending on the specific application and switching frequency. A lower gate resistance can help reduce switching losses, but may also increase the risk of oscillations.
-
To handle high voltage spikes, use a suitable snubber circuit or a voltage clamp to limit the voltage excursion. Additionally, ensure that the device is properly biased and the gate driver circuit is designed to minimize ringing and oscillations.
-
The maximum allowable current for the STK22N6F3 is specified in the datasheet as 22A. However, it's essential to consider the device's thermal limitations and ensure that the current is within the safe operating area (SOA) to prevent overheating and damage.
Trust Checks
Community Provided
System Verified
Community Approved
STK22N6F3 Overview

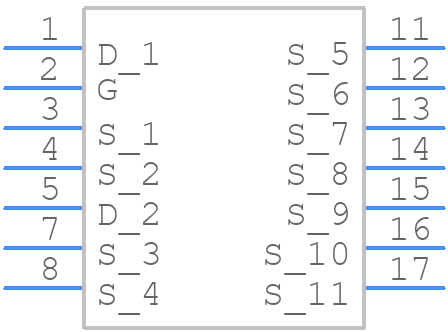

Use the download button to access the STK22N6F3 schematic symbol and PCB footprint.
