STKNX footprint, schematic symbol and 3D model by STMicroelectronics

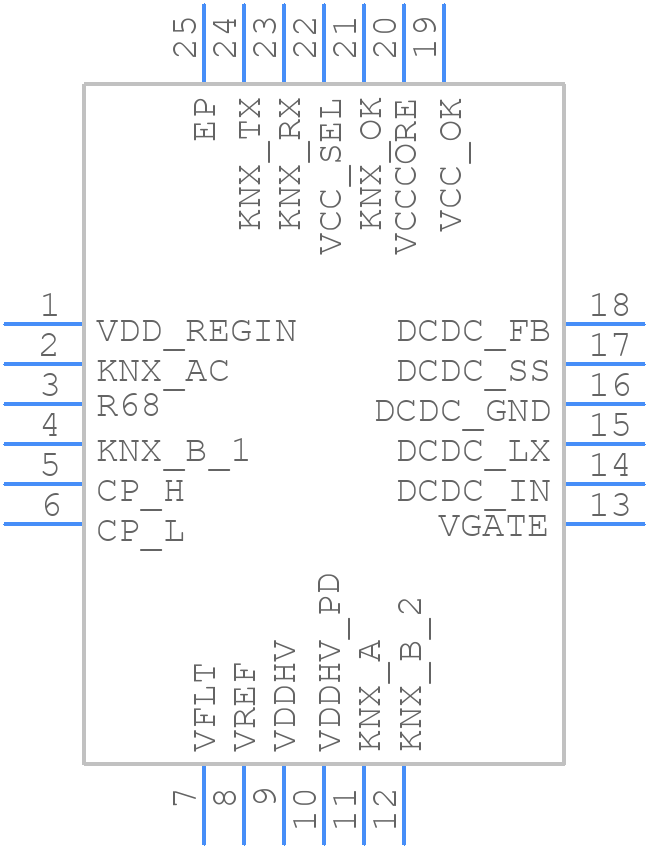

Symbol

click to zoom

PCB Footprints

STKNX - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 4 x 4 x 1.0 24 pitch 0.5 package outline

click to zoom

3D Models

STKNX - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN 4 x 4 x 1.0 24 pitch 0.5 package outline

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STKNX
Part Number STKNX
Manufacturer STMicroelectronics
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - VFQFPN 4 x 4 x 1.0 24 pitch 0.5 package outline
Released Date Sep 24, 2021
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

STKNX Details

Manufacturer Part Number:
STKNX
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
VFQFPN-24
Country Of Origin:
Mainland China
ECCN Code:
EAR99
Factory Lead Time:
20 Weeks
Date Of Intro:
2018-02-12
Manufacturer:
STMicroelectronics
YTEOL:
13
JESD-30 Code:
S-PQCC-N24
Length:
4 mm
Number of Functions:
1
Number of Terminals:
24
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC24,.16SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
1 mm
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Telecom IC Type:
TELECOM CIRCUIT
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
4 mm

STKNX Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the layout symmetrical and avoid vias under the device. Use a 50-ohm microstrip transmission line for the RF output.
Follow the calibration procedure outlined in the application note AN5323. Perform a factory calibration, then perform a system calibration using the STSW-KNXGUI software.
The maximum cable length supported by STKNX is 700 meters, assuming a Category 5e cable with a maximum attenuation of 20 dB at 125 kHz.
No, STKNX is designed to operate with a standard KNX bus voltage of 30 V. Operating the device outside of this voltage range may affect its performance and reliability.
Use the STSW-KNXGUI software to monitor the bus traffic and diagnose issues. Check the device's configuration, bus voltage, and cable connections. Consult the STKNX troubleshooting guide for further assistance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

STKNX Overview

Use the download button to access the STKNX schematic symbol, PCB footprint, and 3D model.
