STL10DN15F3 - STMicroelectronics

Description: N-channel 150 V, 0.20 Ω typ., 2.8 A STripFET™ III Power MOSFET in a PowerFLAT™ 5x6 double island package

Download STL10DN15F3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

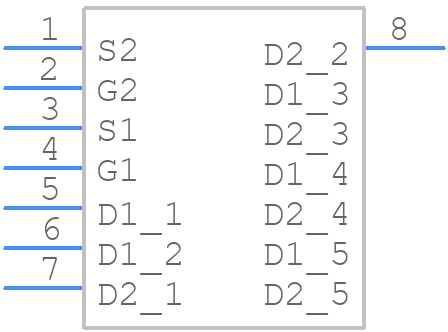

STL10DN15F3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL10DN15F3 - STMicroelectronics PCB footprint - Other - Other - PowerFLAT™ 5x6 double island
click to zoom
3D Models
STL10DN15F3 - STMicroelectronics - 3D model - Other - PowerFLAT™ 5x6 double island
click to zoom

STL10DN15F3 Details

  • Manufacturer Part Number:

    STL10DN15F3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Drain Current-Max (ID):

    10 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Operating Temperature-Max:

    150 °C

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    50 W

  • Surface Mount:

    YES

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STL10DN15F3 Overview

Use the download button to access the STL10DN15F3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STL10, or try a keyword search, such as Power Field-Effect Transistors
