STL110N4F7AG - STMicroelectronics

Description: Automotive-grade N-channel 40 V, 3.3 mΩ typ., 108 A STripFET™ F7 Power MOSFET in a PowerFLAT™ 5x6 package

Download STL110N4F7AG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

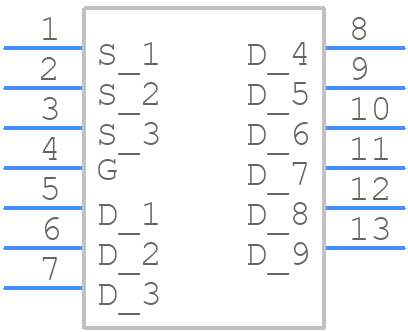

STL110N4F7AG - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL110N4F7AG - STMicroelectronics PCB footprint - Other - Other - PowerFLAT 5x6 WF
click to zoom
3D Models
STL110N4F7AG - STMicroelectronics - 3D model - Other - PowerFLAT 5x6 WF
click to zoom

STL110N4F7AG Details

  • Manufacturer Part Number:

    STL110N4F7AG

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

STL110N4F7AG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device is recommended for optimal thermal performance. The PCB should also have a large copper area for heat dissipation.
  • Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, ensure that the PCB is designed to minimize thermal resistance.
  • A ceramic capacitor with a value of 10uF to 22uF is recommended for input decoupling. The capacitor should be placed as close to the device as possible to minimize parasitic inductance.
  • Use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite bead to filter the input voltage. Also, ensure that the device is operated within the recommended frequency range to minimize EMI.
  • A ceramic capacitor with a value of 10uF to 22uF is recommended for output filtering. The capacitor should be placed as close to the device as possible to minimize parasitic inductance.
