STL120N4F6AG - STMicroelectronics

Description: Automotive-grade N-channel 40 V, 2.9 mΩ typ., 55 A STripFET™ F6 Power MOSFET in a PowerFLAT™ 5x6 package

Download STL120N4F6AG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

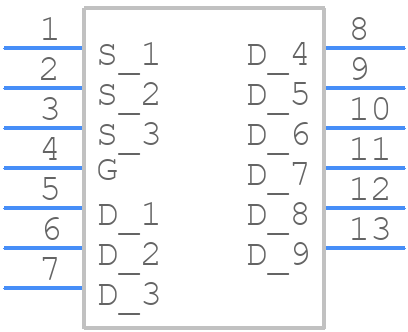

STL120N4F6AG - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL120N4F6AG - STMicroelectronics PCB footprint - Other - Other - STL76DN4LF7AG
click to zoom
3D Models
STL120N4F6AG - STMicroelectronics - 3D model - Other - STL76DN4LF7AG
click to zoom

STL120N4F6AG Details

  • Manufacturer Part Number:

    STL120N4F6AG

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4

  • Configuration:

    SINGLE

  • Drain Current-Max (ID):

    120 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Operating Temperature-Max:

    175 °C

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    96 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

STL120N4F6AG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STL120N4F6AG is -40°C to 150°C.
  • To ensure proper cooling, it's recommended to use a heat sink with a thermal resistance of less than 1°C/W and to maintain a maximum junction temperature of 150°C.
  • The recommended gate resistor value for the STL120N4F6AG is between 10Ω and 100Ω, depending on the specific application and switching frequency.
  • Yes, the STL120N4F6AG is suitable for high-reliability applications due to its robust design and manufacturing process, which ensures a high level of quality and reliability.
  • To protect the STL120N4F6AG from ESD, it's recommended to use ESD protection devices, such as TVS diodes, and to follow proper handling and storage procedures to prevent ESD damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STL120N4F6AG Overview

Use the download button to access the STL120N4F6AG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STL12, or try a keyword search, such as Power Field-Effect Transistors

About STMicroelectronics
