STL125N8F7AG - STMicroelectronics

Description: Automotive N-channel 80 V, 3.6 mΩ typ., 120 A, STripFET F7 Power MOSFET in a PowerFLAT 5x6 package

Download STL125N8F7AG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

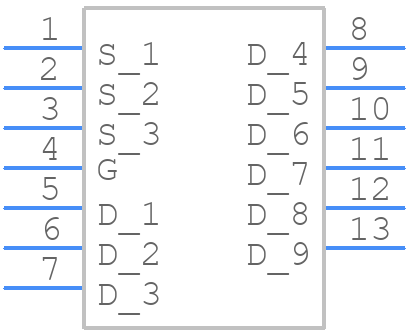

STL125N8F7AG - STMicroelectronics - PCB symbol
