The maximum safe operating area (SOA) for the STL19N60M6 is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal and electrical characteristics. As a general rule, it's recommended to operate the device within the specified maximum ratings and to ensure that the device is not subjected to excessive voltage, current, or temperature stress.
To ensure proper cooling, it's essential to provide adequate heat sinking and thermal management in your design. This can be achieved by using a heat sink with a sufficient thermal conductivity, ensuring good thermal contact between the device and the heat sink, and providing adequate airflow around the device. The datasheet provides thermal resistance values that can be used to estimate the junction temperature of the device.
The recommended gate drive voltage for the STL19N60M6 is typically between 10V to 15V, depending on the specific application and switching frequency. However, it's essential to ensure that the gate drive voltage is within the specified maximum rating of 20V to prevent damage to the device.
Yes, the STL19N60M6 is suitable for high-frequency switching applications up to several hundred kHz. However, it's essential to consider the device's switching losses, gate charge, and parasitic capacitances when designing the circuit. The datasheet provides information on the device's high-frequency characteristics, such as the gate charge and output capacitance, that can be used to optimize the design.
To protect the STL19N60M6 from electrostatic discharge (ESD), it's essential to follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and packaging materials. Additionally, the device should be connected to a ground plane or a protective circuit that can absorb ESD pulses. The datasheet provides information on the device's ESD rating and recommended protection methods.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
STL19N60M6 Overview

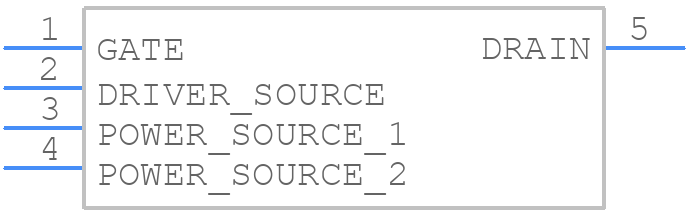

Use the download button to access the STL19N60M6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STL19,
or try a keyword search, such as Power Field-Effect Transistors
About STMicroelectronics
STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components.
STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
