STL24N60DM2 - STMicroelectronics

Description: MOSFET N-channel 600 V, 0.195 Ohm typ., 15 A MDmesh DM2 Power MOSFET in a PowerFLAT 8x8 HV package

Download STL24N60DM2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

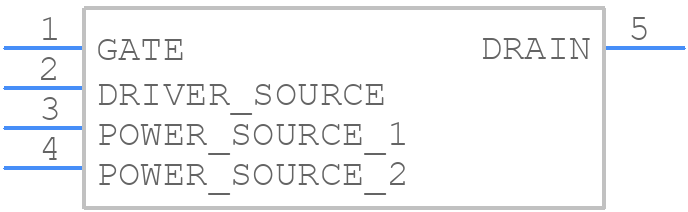

Symbol
STL24N60DM2 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL24N60DM2 - STMicroelectronics PCB footprint - Other - Other - STL24N60DM2-1
click to zoom
3D Models
STL24N60DM2 - STMicroelectronics - 3D model - Other - STL24N60DM2-1
click to zoom

STL24N60DM2 Details

  • Manufacturer Part Number:

    STL24N60DM2

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    PowerFLAT 8x8 HV

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

STL24N60DM2 Frequently Asked Questions (FAQs)

  • The maximum operating junction temperature of the STL24N60DM2 is 150°C.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10°C/W is recommended. Additionally, ensure good airflow around the device and avoid blocking the heat sink fins.
  • The recommended gate resistor value for the STL24N60DM2 is between 10Ω and 100Ω, depending on the specific application and switching frequency.
  • Yes, the STL24N60DM2 is suitable for high-reliability applications due to its robust design and manufacturing process. However, it's essential to follow proper design and assembly guidelines to ensure the device operates within its specifications.
  • To protect the STL24N60DM2 from ESD, handle the device by the body or use an anti-static wrist strap. Ensure the PCB and assembly process follow ESD-safe guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STL24N60DM2 Overview

Use the download button to access the STL24N60DM2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STL24, or try a keyword search, such as Power Field-Effect Transistors
