STL26N60DM6 - STMicroelectronics

Description: MOSFET N-channel 600 V, 175 mOhm typ., 15 A MDmesh DM6 Power MOSFET in a PowerFLAT 8x8 HV package

Download STL26N60DM6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

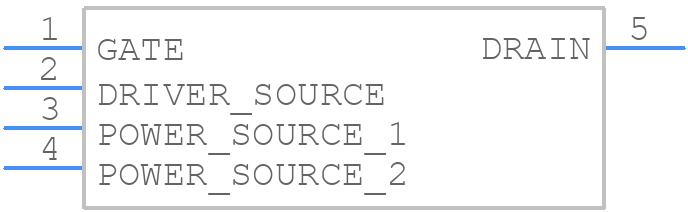

Symbol
STL26N60DM6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL26N60DM6 - STMicroelectronics PCB footprint - Other - Other - PowerFLAT 8x8 HV_2019
click to zoom
3D Models
STL26N60DM6 - STMicroelectronics - 3D model - Other - PowerFLAT 8x8 HV_2019
click to zoom

STL26N60DM6 Details

  • Manufacturer Part Number:

    STL26N60DM6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Date Of Intro:

    2019-01-23

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

STL26N60DM6 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STL26N60DM6 is -40°C to 150°C.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10°C/W is recommended. Additionally, the device should be mounted on a PCB with a thermal pad and thermal vias to dissipate heat efficiently.
  • The recommended gate resistor value for the STL26N60DM6 is between 10Ω to 100Ω, depending on the specific application and switching frequency.
  • Yes, the STL26N60DM6 is suitable for high-frequency switching applications up to 100 kHz. However, the device's switching characteristics and losses should be carefully evaluated to ensure reliable operation.
  • To protect the STL26N60DM6 from overvoltage and overcurrent, a suitable voltage clamp and current limiting circuit should be implemented. Additionally, a fuse or circuit breaker can be used to protect the device from excessive current.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STL26N60DM6 Overview

Use the download button to access the STL26N60DM6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STL26, or try a keyword search, such as Power Field-Effect Transistors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
