STL33N60DM2 - STMicroelectronics

Description: N-channel 600 V, 0.115 Ω typ., 21 A MDmesh™ DM2 Power MOSFET in a PowerFLAT™ 8x8 HV package

Download STL33N60DM2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

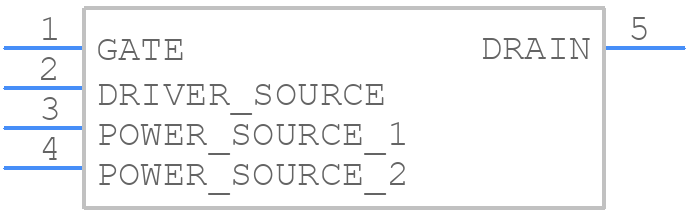

STL33N60DM2 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL33N60DM2 - STMicroelectronics PCB footprint - Other - Other - STL33N60DM2-2
click to zoom
3D Models
STL33N60DM2 - STMicroelectronics - 3D model - Other - STL33N60DM2-2
click to zoom

STL33N60DM2 Details

  • Manufacturer Part Number:

    STL33N60DM2

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    PowerFLAT 8x8 HV

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

STL33N60DM2 Frequently Asked Questions (FAQs)

  • The maximum operating junction temperature of the STL33N60DM2 is 150°C.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10°C/W is recommended. Additionally, the device should be mounted on a PCB with a thermal pad and thermal vias to dissipate heat efficiently.
  • The recommended gate resistor value for the STL33N60DM2 is between 10Ω and 100Ω, depending on the specific application and switching frequency.
  • Yes, the STL33N60DM2 is qualified for automotive and industrial applications, and is suitable for high-reliability applications. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
  • To protect the STL33N60DM2 from ESD, it's essential to handle the device with an anti-static wrist strap or mat, and to ensure that the PCB and assembly process follow ESD-safe guidelines.
