STL38N65M5 - STMicroelectronics

Description: N-channel 650 V, 0.090 Ω typ., 22.5 A MDmesh™ M5 Power MOSFET in a PowerFLAT™ 8x8 HV package

Download STL38N65M5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

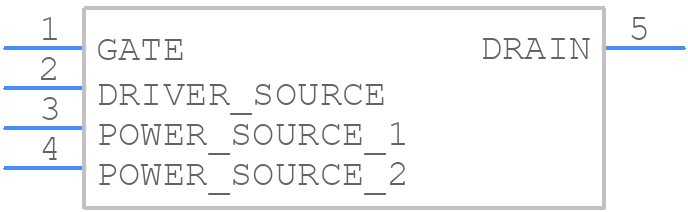

Symbol
STL38N65M5 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL38N65M5 - STMicroelectronics PCB footprint - Other - Other - PowerFLAT™ 8x8 HV_2022-3
click to zoom
3D Models
STL38N65M5 - STMicroelectronics - 3D model - Other - PowerFLAT™ 8x8 HV_2022-3
click to zoom

STL38N65M5 Details

  • Manufacturer Part Number:

    STL38N65M5

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.7

  • Avalanche Energy Rating (Eas):

    660 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    22.5 A

  • Drain-source On Resistance-Max:

    0.105 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    5.8 pF

  • JESD-30 Code:

    S-PSSO-N4

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    150 W

  • Pulsed Drain Current-Max (IDM):

    90 A

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STL38N65M5 Frequently Asked Questions (FAQs)

  • The maximum operating junction temperature of the STL38N65M5 is 150°C.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10°C/W is recommended. Additionally, the device should be mounted on a PCB with a thermal pad and thermal vias to dissipate heat efficiently.
  • The recommended gate resistor value for the STL38N65M5 is between 10Ω and 100Ω, depending on the specific application and switching frequency.
  • Yes, the STL38N65M5 is qualified for automotive and industrial applications, and is suitable for high-reliability applications. However, it's essential to follow the recommended operating conditions and design guidelines to ensure reliable operation.
  • To protect the STL38N65M5 from overvoltage and overcurrent, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) to limit the voltage, and a current sense resistor or a fuse to detect and respond to overcurrent conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STL38N65M5 Overview

Use the download button to access the STL38N65M5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STL38, or try a keyword search, such as Power Field-Effect Transistors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
