STL58N3LLH5 - STMicroelectronics

Description: Automotive-grade N-channel 30 V, 0.0076 Ω typ., 56 A STripFET™ H5 Power MOSFET in a PowerFLAT™ 5x6 package

Download STL58N3LLH5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

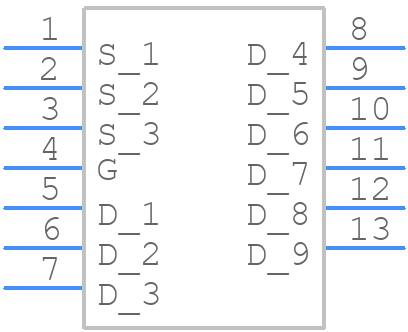

STL58N3LLH5 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL58N3LLH5 - STMicroelectronics PCB footprint - Other - Other - PowerFLAT™ 5x6
click to zoom
3D Models
STL58N3LLH5 - STMicroelectronics - 3D model - Other - PowerFLAT™ 5x6
click to zoom

STL58N3LLH5 Details

  • Manufacturer Part Number:

    STL58N3LLH5

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    150 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    64 A

  • Drain-source On Resistance-Max:

    0.0112 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    27 pF

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    62.5 W

  • Pulsed Drain Current-Max (IDM):

    224 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STL58N3LLH5 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in their application note AN5046, which includes guidelines for thermal pad connection, copper pour, and via placement to minimize thermal resistance.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the voltage on the VIN pin to 5V to ensure reliable operation and prevent damage to the internal voltage regulator.
  • To optimize the layout for EMI and EMC compliance, follow the guidelines in the STMicroelectronics application note AN2863, which provides recommendations for PCB layout, component placement, and shielding to minimize electromagnetic interference and ensure compliance with regulatory standards.
  • The recommended capacitor value for the VCAP pin is 1uF to 10uF, depending on the specific application and operating conditions. A larger capacitor value can help improve the power supply rejection ratio (PSRR) and reduce noise on the internal voltage regulator.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STL58N3LLH5 Overview

Use the download button to access the STL58N3LLH5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STL58, or try a keyword search, such as Power Field-Effect Transistors
