STL8DN4LLF6 - STMicroelectronics

Description: Dual N-channel 40 V, 0.025 Ω typ., 8 A STripFET™ VI DeepGATE™ Power MOSFET in a PowerFLAT™ 5x6 double island package

Download STL8DN4LLF6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

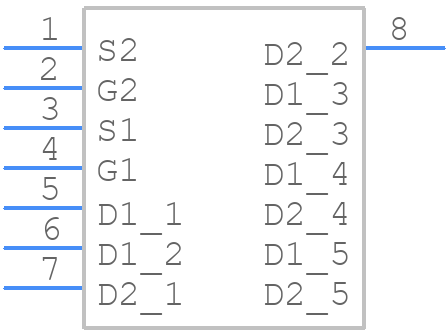

STL8DN4LLF6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL8DN4LLF6 - STMicroelectronics PCB footprint - Other - Other - PowerFLAT™ 5x6 double island
click to zoom
3D Models
STL8DN4LLF6 - STMicroelectronics - 3D model - Other - PowerFLAT™ 5x6 double island
click to zoom

STL8DN4LLF6 Details

  • Manufacturer Part Number:

    STL8DN4LLF6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STL8DN4LLF6 Overview

Use the download button to access the STL8DN4LLF6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STL8D, or try a keyword search, such as Power Field-Effect Transistors
