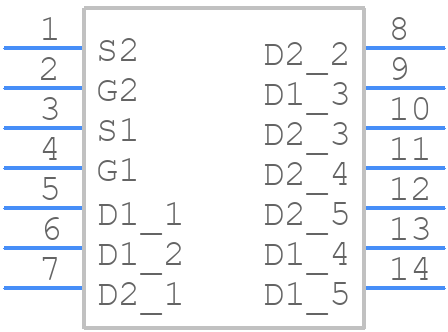

STL8DN6LF6AG - STMicroelectronics

STL8DN6LF6AG Details

• Manufacturer Part Number:

  STL8DN6LF6AG

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• Factory Lead Time:

  26 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  5

• Avalanche Energy Rating (Eas):

  120 mJ

• Case Connection:

  DRAIN

• Configuration:

  SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  60 V

• Drain Current-Max (ID):

  32 A

• Drain-source On Resistance-Max:

  0.031 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  60 pF

• JESD-30 Code:

  R-PDSO-F8

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  2

• Number of Terminals:

  8

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  55 W

• Pulsed Drain Current-Max (IDM):

  128 A

• Reference Standard:

  AEC-Q101

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  FLAT

• Terminal Position:

  DUAL

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
