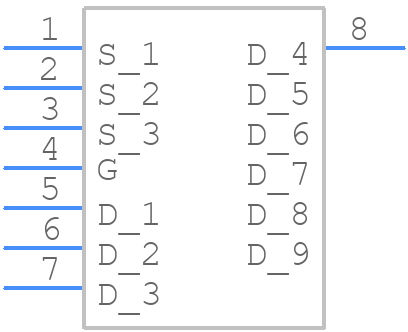

STL8N6LF3 - STMicroelectronics

STL8N6LF3 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  STMicroelectronics provides a recommended PCB layout in their application note AN5046, which includes guidelines for thermal pad connection, copper pouring, and via placement to minimize thermal resistance.
• How do I ensure reliable operation at high temperatures?
  To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using a heat sink, thermal interface material, and ensuring good airflow around the device.
• What is the maximum allowed voltage on the gate pin?
  Although the datasheet specifies a maximum gate-source voltage (Vgs) of ±20V, it's recommended to limit the voltage to ±15V to ensure reliable operation and prevent damage to the device.
• How do I protect the device from electrostatic discharge (ESD)?
  To protect the STL8N6LF3 from ESD, follow proper handling and storage procedures, use ESD-safe materials, and consider adding ESD protection devices, such as TVS diodes or ESD arrays, to the PCB design.
• What is the recommended gate drive voltage and current?
  The recommended gate drive voltage is typically between 10V to 15V, and the current depends on the specific application and switching frequency. A general rule of thumb is to use a gate drive current of 1A to 2A for optimal switching performance.
