STL9P2UH7 - STMicroelectronics

Description: P-channel 20 V, 0.0195 Ω typ., 9 A STripFET™ H7 Power MOSFET in a PowerFLAT™ 3.3x3.3 package

Download STL9P2UH7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

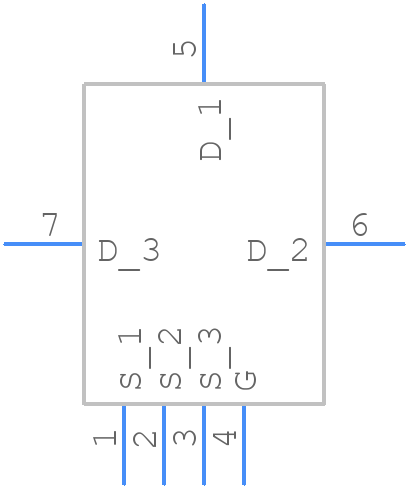

STL9P2UH7 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL9P2UH7 - STMicroelectronics PCB footprint - Other - Other - PowerFLAT 3.3x3.3
click to zoom
3D Models
STL9P2UH7 - STMicroelectronics - 3D model - Other - PowerFLAT 3.3x3.3
click to zoom

STL9P2UH7 Details

  • Manufacturer Part Number:

    STL9P2UH7

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    9 A

  • Drain-source On Resistance-Max:

    0.085 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    188 pF

  • JESD-30 Code:

    S-PDSO-F5

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    2.9 W

  • Pulsed Drain Current-Max (IDM):

    36 A

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STL9P2UH7 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5176, which includes guidelines for thermal pad connection, copper pouring, and via placement to ensure optimal thermal performance.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. Refer to the application note AN5176 for more detailed guidance.
  • The maximum allowed voltage on the enable pin (EN) is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage divider or a level shifter if the control signal is higher than 6V.
  • To ensure stability and reliability, follow the recommended operating conditions, layout guidelines, and component selection. Additionally, perform thorough testing, including thermal testing, to validate the design. It's also recommended to consult with STMicroelectronics' support team or a qualified engineer if you're unsure about any aspect of the design.
  • The STL9P2UH7 is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and consider thermal management techniques, such as heat sinks or thermal interfaces, to ensure reliable operation in high-temperature environments.
