STLD40DPUR - STMicroelectronics

Description: LED Lighting Drivers White LED pwr supply large dis backlight

Download STLD40DPUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

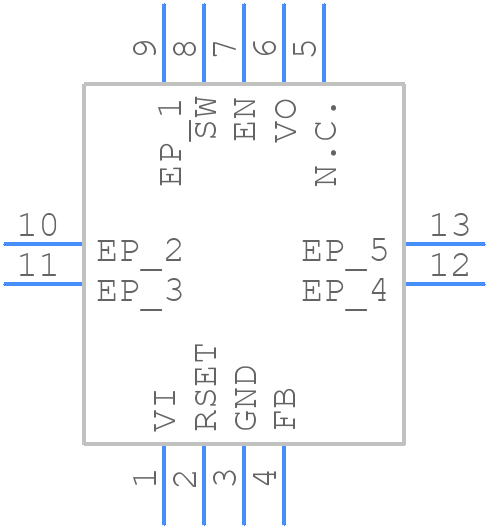

STLD40DPUR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STLD40DPUR - STMicroelectronics PCB footprint - Other - Other - STLD40DPUR-4
click to zoom
3D Models
STLD40DPUR - STMicroelectronics - 3D model - Other - STLD40DPUR-4
click to zoom

STLD40DPUR Details

  • Manufacturer Part Number:

    STLD40DPUR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, QFN-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.3

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

STLD40DPUR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STLD40DPUR is -40°C to 125°C.
  • To ensure reliability, follow the recommended operating conditions, use a suitable thermal management system, and consider derating the device according to the datasheet guidelines.
  • Follow the recommended PCB layout and thermal pad design guidelines provided in the datasheet and application notes to ensure optimal thermal performance and minimize thermal resistance.
  • Follow the power sequencing and startup guidelines provided in the datasheet to ensure proper device operation and prevent damage.
  • Follow the recommended soldering and rework conditions provided in the datasheet and application notes to prevent device damage and ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STLD40DPUR Overview

Use the download button to access the STLD40DPUR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STLD4, or try a keyword search, such as Display Drivers
