STLM75M2E - STMicroelectronics

Description: DIGITAL TEMPERATURE SENSOR AND THERMAL WATCHDOG Serial Switch/Digital Sensor, 9 Bit(s), 3Cel, CMOS, Square, 8 Pin, Surface Mount ; ECCN: EAR99

Download STLM75M2E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

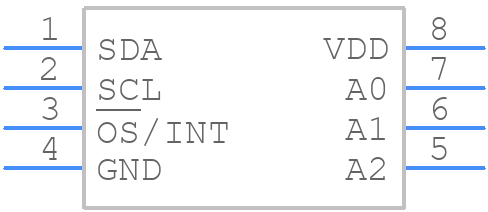

STLM75M2E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STLM75M2E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - . SO8 mechanical data**
click to zoom
3D Models
STLM75M2E - STMicroelectronics - 3D model - Small Outline Packages - . SO8 mechanical data**
click to zoom

STLM75M2E Details

  • Manufacturer Part Number:

    STLM75M2E

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MSOP-8

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    3 Cel

  • Additional Feature:

    CMOS COMPATIBLE, THERMAL WATCHDOG

  • Body Breadth:

    2.8 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    2.8 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    9

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.15 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

STLM75M2E Frequently Asked Questions (FAQs)

  • The STLM75M2E can operate from -40°C to 150°C, but the accuracy of the temperature measurement is guaranteed from -20°C to 100°C.
  • The STLM75M2E does not require calibration. It is factory-calibrated and provides an accuracy of ±1°C from -20°C to 100°C. However, if you need higher accuracy, you can perform a one-point calibration by writing a correction value to the device's internal register.
  • The typical current consumption of the STLM75M2E is 10 μA in normal operation mode and 1 μA in shutdown mode.
  • Yes, the STLM75M2E has a high level of noise immunity due to its differential output and internal filtering. However, it's still recommended to use proper PCB layout and shielding techniques to minimize noise coupling.
  • The STLM75M2E has a standard I2C interface, which can be easily interfaced with most microcontrollers. You can use the STMicroelectronics-provided library or write your own I2C driver to communicate with the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STLM75M2E Overview

Use the download button to access the STLM75M2E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STLM7, or try a keyword search, such as Temperature Sensors
