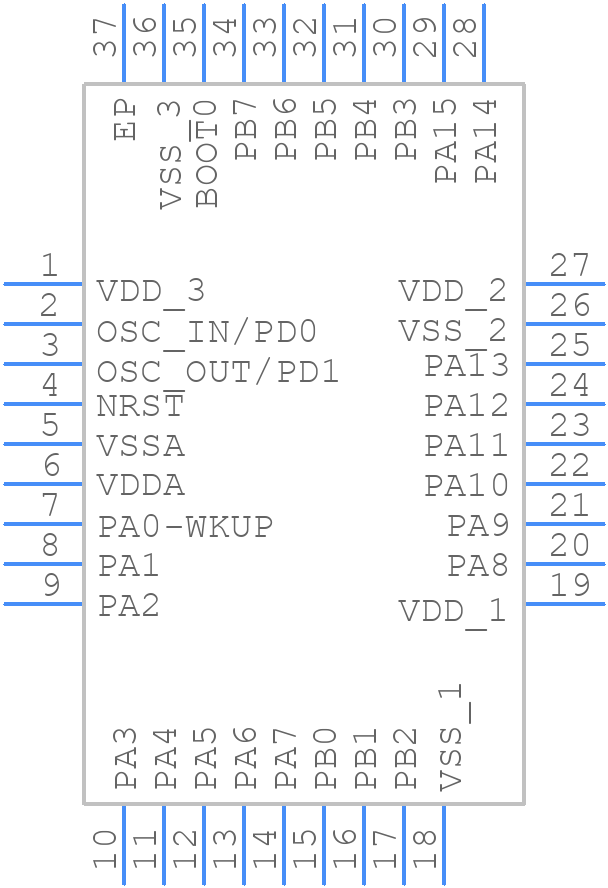

STM32F101T6U6 - STMicroelectronics

STM32F101T6U6 Details

• Manufacturer Part Number:

  STM32F101T6U6

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  6 X 6 MM, 0.50 MM PITCH, VQFN-36

• Pin Count:

  36

• HTS Code:

  8542.31.00.25

• Manufacturer:

  STMicroelectronics

• YTEOL:

  8.22

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  CORTEX-M3

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  S-XQCC-N36

• JESD-609 Code:

  e3

• Length:

  6 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  26

• Number of Terminals:

  36

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC36,.25SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  6144

• ROM (words):

  32768

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1 mm

• Speed:

  36 MHz

• Supply Current-Max:

  26 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  6 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
