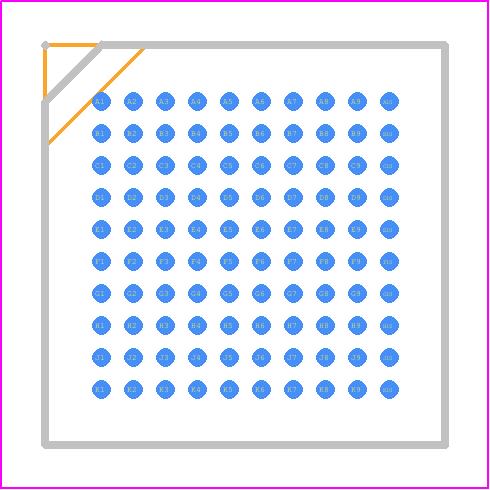

STM32F103V8H6 - STMicroelectronics

STM32F103V8H6 Frequently Asked Questions (FAQs)

• What is the maximum clock frequency of the STM32F103V8H6?
  The maximum clock frequency of the STM32F103V8H6 is 72 MHz, but it can be overclocked to 80 MHz with some limitations.
• How do I configure the clock settings for the STM32F103V8H6?
  The clock settings can be configured using the Clock Control Register (RCC_CR) and the Flash Control Register (FLASH_ACR). The RCC_CR register is used to select the clock source, and the FLASH_ACR register is used to configure the flash memory access time.
• What is the purpose of the BOOT0 and BOOT1 pins on the STM32F103V8H6?
  The BOOT0 and BOOT1 pins are used to select the boot mode of the microcontroller. BOOT0 is used to select between the internal flash and the system memory, and BOOT1 is used to select between the internal flash and the external memory.
• How do I use the USART peripheral on the STM32F103V8H6?
  The USART peripheral can be used for asynchronous communication. To use it, you need to configure the USART_CR1 register to enable the USART, set the baud rate using the USART_BRR register, and configure the USART_CR2 register to select the word length and stop bits.
• What is the purpose of the NVIC (Nested Vectored Interrupt Controller) on the STM32F103V8H6?
  The NVIC is used to handle interrupts generated by the peripherals. It allows you to prioritize interrupts and handle them efficiently. You can configure the NVIC using the NVIC_ISERx and NVIC_ICERx registers.
