STM32F103ZGH6J - STMicroelectronics

Description: Mainstream Performance line, Arm Cortex-M3 MCU with 1 Mbyte of Flash memory, 72 MHz CPU, motor control, USB and CAN

Download STM32F103ZGH6J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32F103ZGH6J - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

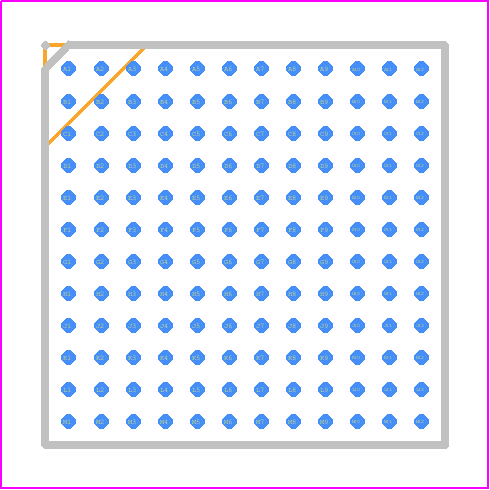

STM32F103ZGH6J - STMicroelectronics PCB footprint - BGA - BGA - LFBGA144 – 144-ball 10 x 10 mm, 0.8 mm
click to zoom
3D Models
STM32F103ZGH6J - STMicroelectronics - 3D model - BGA - LFBGA144 – 144-ball 10 x 10 mm, 0.8 mm
click to zoom

STM32F103ZGH6J Details

  • Manufacturer Part Number:

    STM32F103ZGH6J

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer Package Code:

    LFBGA 144 10x10x1.7

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    16 MHz

  • DMA Channels:

    YES

  • Length:

    10 mm

  • Number of I/O Lines:

    112

  • Number of Terminals:

    144

  • PWM Channels:

    YES

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Speed:

    72 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F103ZGH6J Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F103ZGH6J is 72 MHz, but it can be overclocked to 80 MHz with some limitations.
  • The clock settings for the STM32F103ZGH6J can be configured using the Clock Control Register (RCC) and the Power Control Register (PWR). You can use the STM32CubeMX tool or write your own code to configure the clock settings.
  • The main difference between the STM32F103ZGH6J and the STM32F103RB is the package type and pin count. The STM32F103ZGH6J is a 144-pin LQFP package, while the STM32F103RB is a 64-pin LQFP package. The ZGH6J has more peripherals and features than the RB.
  • No, the STM32F103ZGH6J is a 3.3V device and should not be powered with 5V. The maximum voltage rating for the VDD pin is 3.6V, and exceeding this voltage can damage the device.
  • The STM32F103ZGH6J can be programmed using a variety of methods, including the ST-Link/V2 debugger, the UART bootloader, and the SWD interface. You can use the STM32CubeMX tool or a third-party IDE such as Keil µVision or IAR Embedded Workbench to write and debug code for the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32F103ZGH6J Overview

Use the download button to access the STM32F103ZGH6J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
