STM32F103ZGH6JTR - STMicroelectronics

Description: Mainstream Performance line, Arm Cortex-M3 MCU with 1 Mbyte of Flash memory, 72 MHz CPU, motor control, USB and CAN

Download STM32F103ZGH6JTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32F103ZGH6JTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

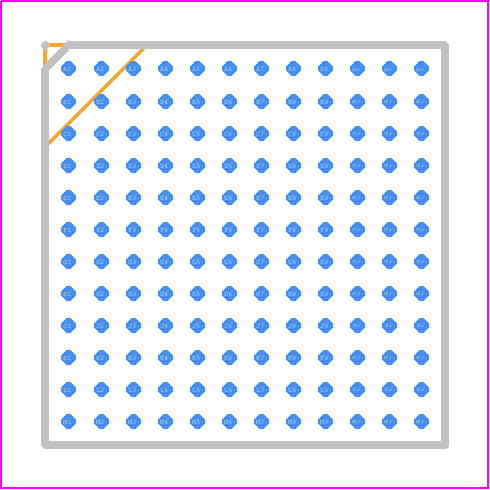

STM32F103ZGH6JTR - STMicroelectronics PCB footprint - BGA - BGA - ST LFBGA144
click to zoom
3D Models
STM32F103ZGH6JTR - STMicroelectronics - 3D model - BGA - ST LFBGA144
click to zoom

STM32F103ZGH6JTR Details

  • Manufacturer Part Number:

    STM32F103ZGH6JTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

STM32F103ZGH6JTR Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F103ZGH6JTR is 72 MHz, but it can be overclocked to 80 MHz with some limitations.
  • The clock settings can be configured using the Clock Control Register (RCC_CR) and the PLL Configuration Register (RCC_CFGR). You can also use the STM32CubeMX tool to generate the clock configuration code.
  • The main difference is the package type and pin count. The STM32F103ZGH6JTR is a 144-pin LQFP package, while the STM32F103RB is a 64-pin LQFP package. The ZGH6JTR has more GPIO pins and peripherals available.
  • Yes, the STM32F103ZGH6JTR can operate with a power supply voltage range of 2.0V to 3.6V. However, the recommended operating voltage is 3.3V.
  • The STM32F103ZGH6JTR can be programmed using a variety of tools, including the ST-Link/V2 debugger, the Keil µVision IDE, and the IAR Embedded Workbench. You can also use the STM32CubeMX tool to generate the initialization code and program the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32F103ZGH6JTR Overview

Use the download button to access the STM32F103ZGH6JTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
