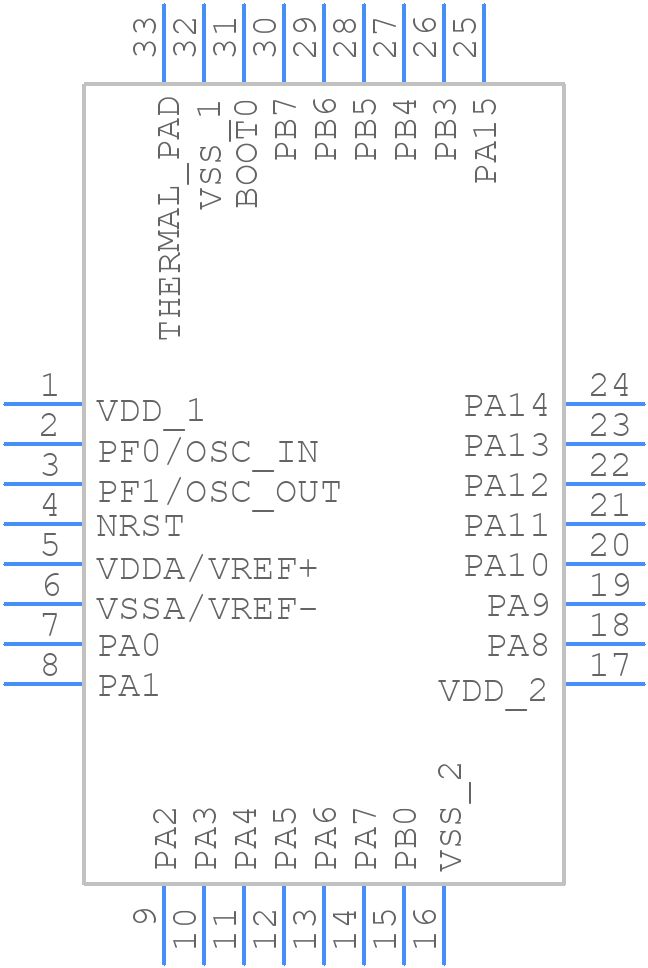

STM32F302K8U6 - STMicroelectronics

STM32F302K8U6 Details

• Manufacturer Part Number:

  STM32F302K8U6

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  9

• Has ADC:

  YES

• Bit Size:

  32

• CPU Family:

  CORTEX-M4F

• Clock Frequency-Max:

  32 MHz

• DMA Channels:

  YES

• JESD-30 Code:

  S-PQCC-N32

• JESD-609 Code:

  e3

• Length:

  5 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  15

• Number of Terminals:

  32

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC32,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  16384

• ROM (words):

  65536

• ROM Programmability:

  FLASH

• Speed:

  72 MHz

• Supply Current-Max:

  50 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  2 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  5 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
