STM32F334C8T7TR - STMicroelectronics

Description: Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 64 Kbytes of Flash memory, 72 MHz CPU, CCM, 12-bit ADC 5 MSPS, comparators, op-amp, hr timer

Download STM32F334C8T7TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

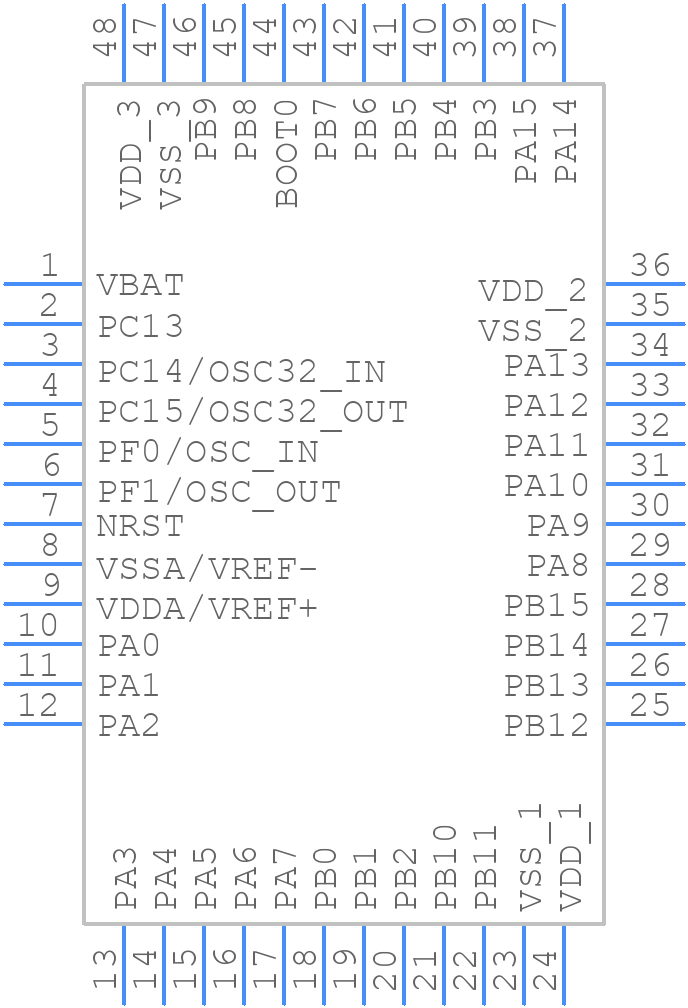

STM32F334C8T7TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32F334C8T7TR - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP - 48 pins
click to zoom
3D Models
STM32F334C8T7TR - STMicroelectronics - 3D model - Quad Flat Packages - LQFP - 48 pins
click to zoom

STM32F334C8T7TR Details

  • Manufacturer Part Number:

    STM32F334C8T7TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    32 MHz

  • DMA Channels:

    YES

  • Length:

    7 mm

  • Number of I/O Lines:

    37

  • Number of Terminals:

    48

  • PWM Channels:

    YES

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F334C8T7TR Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F334C8T7TR is 72 MHz, but it can be overclocked to 80 MHz with some limitations.
  • The clock settings can be configured using the Clock Configuration Tool (CCT) in STM32CubeMX or by writing code to configure the RCC (Reset and Clock Control) registers.
  • The main difference is the package type: STM32F334C8T7TR is in a LQFP48 package, while STM32F334R8T7TR is in a LQFP64 package. The 'C' and 'R' suffixes refer to the package type, not the device functionality.
  • Yes, the STM32F334C8T7TR can operate with a power supply voltage ranging from 2.0V to 3.6V, making it compatible with 3.3V systems.
  • The DMA controller can be used to transfer data between peripherals and memory without CPU intervention. This can be done by configuring the DMA registers and using the DMA API provided in the STM32CubeF3 firmware package.
