STM32F469NGH6 - STMicroelectronics

Description: Arm®Cortex®-M4 32b MCU+FPU, 225DMIPS, up to 2MB Flash/384+4KB RAM, USB OTG HS/FS, Ethernet, FMC, dual Quad-SPI, Graphical accelerator, Camera IF, LCD-TFT & MIPI DSI

Download STM32F469NGH6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32F469NGH6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

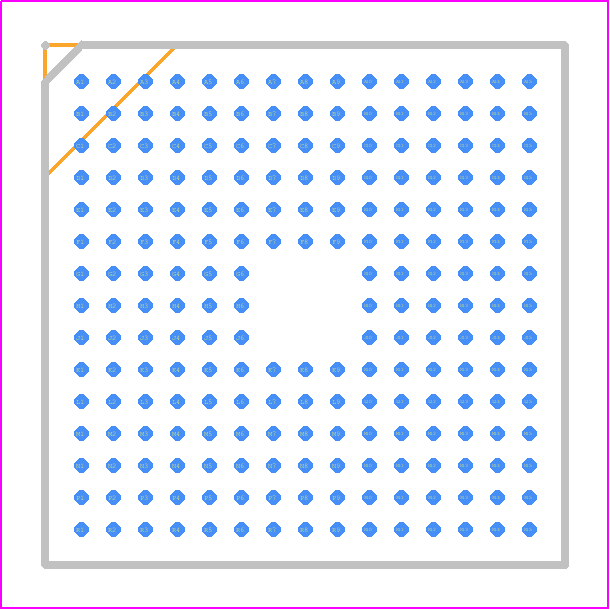

STM32F469NGH6 - STMicroelectronics PCB footprint - BGA - BGA - STM32F769NIH6
click to zoom
3D Models
STM32F469NGH6 - STMicroelectronics - 3D model - BGA - STM32F769NIH6
click to zoom

STM32F469NGH6 Details

  • Manufacturer Part Number:

    STM32F469NGH6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    TFBGA 13X13X1.2 216L P 0.8 MM

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2017-08-22

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    32

  • Clock Frequency-Max:

    26 MHz

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    161

  • Number of Terminals:

    216

  • PWM Channels:

    YES

  • Package Code:

    TFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Speed:

    180 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F469NGH6 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F469NGH6 is 180 MHz.
  • The clock settings for the STM32F469NGH6 can be configured using the Clock Configuration Tool (CCT) software provided by STMicroelectronics or by writing code to configure the clock registers directly.
  • The VBAT pin is used to connect a battery or a supercapacitor to the STM32F469NGH6, which allows the microcontroller to retain its real-time clock (RTC) and backup registers even when the main power supply is turned off.
  • The DMA controller on the STM32F469NGH6 can be used to transfer data between peripherals and memory without involving the CPU. This can be done by configuring the DMA channels, setting up the transfer parameters, and enabling the DMA transfer.
  • The main difference between the STM32F469NGH6 and the STM32F469ZGT6 is the package type. The STM32F469NGH6 comes in a LQFP144 package, while the STM32F469ZGT6 comes in a LQFP176 package. The LQFP176 package has more pins, which allows for more peripherals to be connected.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32F469NGH6 Overview

Use the download button to access the STM32F469NGH6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microcontrollers
