We use Cookies to give you the best experience on our website. By using our website and services, you expressly agree to the placement of our performance, functionality and advertising cookies. Please see our Privacy Policy for more information.

OK, Thanks

Notice for California users only:

This website or its third-party tools processes personal data.
In case of sale of your personal information, you may opt out by using the link: do not sell my personal information.

Otherwise, by continuing to use our website, you expressly agree to the use of personal information. To find out more about the categories of personal information collected and the purposes for which such information will be used, please refer to our Privacy Policy.

I understand

Opt-Out

If you are a California resident, the California Consumer Privacy Act ("CCPA") provides you with the right to opt out of the 'sale' of your Personal Information. Please review our Privacy Policy for a more detailed description of how we collect, use, and share the Personal Information of California residents in operating our business, your privacy rights as a California resident, and how to exercise your rights as a California resident.

To request that Supplyframe may not 'sell' your Personal Information, please submit the form below. Please note that some transfers of your Personal Information may not be considered 'sales' and certain exemptions may apply under the CCPA. Your selection does not affect other use and sharing of your information as outlined in our Privacy Policy.

Supplyframe is committed to protecting and respecting your privacy, and we’ll only use your personal information to administer your account and to provide the products and services you requested from us.

By clicking submit below, you consent to allow Supplyframe to store and process the personal information submitted above to provide you the content requested.

Part Image

STM32L151C8T6A - STMicroelectronics

Description: ARM Microcontrollers - MCU 16/32-BITS MICROS

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

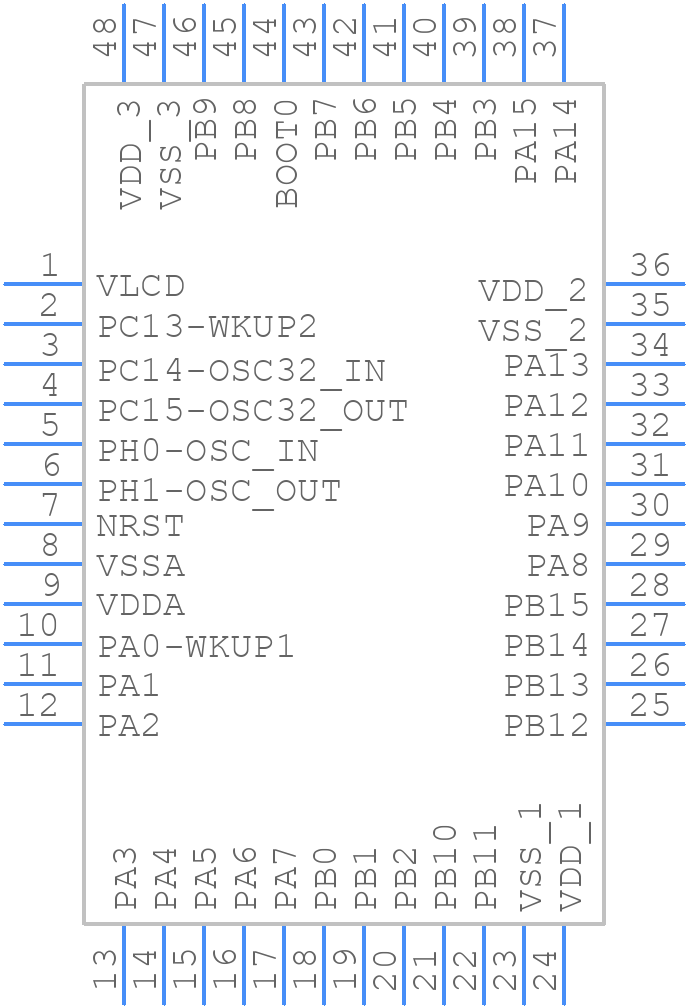

STM32L151C8T6A - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP48 - 48-pin, 7 x 7 mm
click to zoom

3D Models

STM32L151C8T6A - STMicroelectronics  - 3D model - Quad Flat Packages - LQFP48 - 48-pin, 7 x 7 mm
click to zoom

STM32L151C8T6A Details

  • Manufacturer Part Number:

    STM32L151C8T6A

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFQFP,

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    STMicroelectronics

  • Risk Rank:

    0.67

  • Samacsys Modified On:

    2022-07-08 14:47:23

  • YTEOL:

    9.47

  • Has ADC:

    YES

  • Bit Size:

    32

  • CPU Family:

    CORTEX-M3

  • Clock Frequency-Max:

    32 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    7

  • Number of External Interrupts:

    16

  • Number of I/O Lines:

    37

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    48

  • Number of Timers:

    6

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    32768

  • RAM (words):

    32768

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

STM32L151C8T6A Overview

Use the download button to access the STM32L151C8T6A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microcontrollers

Parts related to STM32L151C8T6A

Showing 0 results

STM32L151C8T6A Alternates

Showing results

Image Part Number Model
Part Image STM32L151C8T6 STMicroelectronics

Ultra-low-power Arm Cortex-M3 MCU with 64 Kbytes of Flash memory, 32 MHz CPU, USB

Part Image STM32L151C8T7A STMicroelectronics

32-BIT, FLASH, 32MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-48

Part Image STM32L151C8T6TTR STMicroelectronics

RISC MICROCONTROLLER

Part Image STM32L151C8T7AD STMicroelectronics

32-BIT, FLASH, 32MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-48

Part Image STM32L151C8T6D STMicroelectronics

32-BIT, FLASH, 32MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-48

For a full list of alternate parts for STM32L151C8T6A, check out FindChips.com
