STM32L562CEU6P - STMicroelectronics

Description: Ultra-low-power Arm® Cortex®-M33 32-bit MCU+TrustZone®+FPU, 165DMIPS, up to 512KB Flash, 256KB SRAM, SMPS, AES+PKA

Download STM32L562CEU6P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

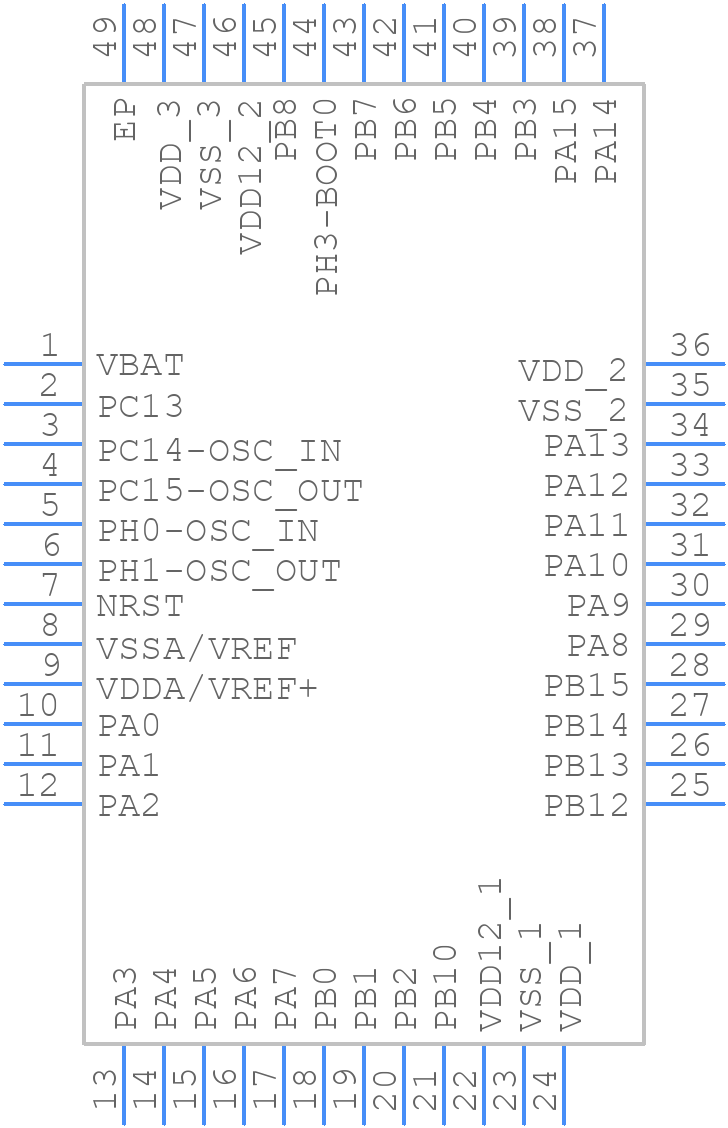

STM32L562CEU6P - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32L562CEU6P - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFQFPN - 48 leads
click to zoom
3D Models
STM32L562CEU6P - STMicroelectronics - 3D model - Quad Flat No-Lead - UFQFPN - 48 leads
click to zoom

STM32L562CEU6P Details

  • Manufacturer Part Number:

    STM32L562CEU6P

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2019-12-23

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    48 MHz

  • DMA Channels:

    YES

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    38

  • Number of Terminals:

    48

  • PWM Channels:

    YES

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Speed:

    110 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - immersion

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32L562CEU6P Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STM32L562CEU6P is -40°C to 85°C (industrial grade) and -40°C to 125°C (extended grade).
  • The clock speed of the STM32L562CEU6P can be configured using the Clock Control Register (RCC) and the Power Control Register (PWR). The clock speed can be set to 32 kHz, 16 MHz, or 64 MHz, depending on the application requirements.
  • The maximum current consumption of the STM32L562CEU6P depends on the operating mode and the clock speed. In Run mode, the maximum current consumption is around 350 μA/MHz, and in Low Power Run mode, it is around 150 μA/MHz.
  • The STM32L562CEU6P has several low-power modes, including Sleep mode, Stop mode, and Standby mode. These modes can be entered by configuring the Power Control Register (PWR) and the Clock Control Register (RCC). The low-power modes can help reduce power consumption and extend battery life in battery-powered applications.
  • The STM32L562CEU6P has a maximum flash memory size of 512 KB.
