STM32L562CEU6TR - STMicroelectronics

Description: Ultra-low-power Arm® Cortex®-M33 32-bit MCU+TrustZone®+FPU, 165DMIPS, up to 512KB Flash, 256KB SRAM, SMPS, AES+PKA

Download STM32L562CEU6TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

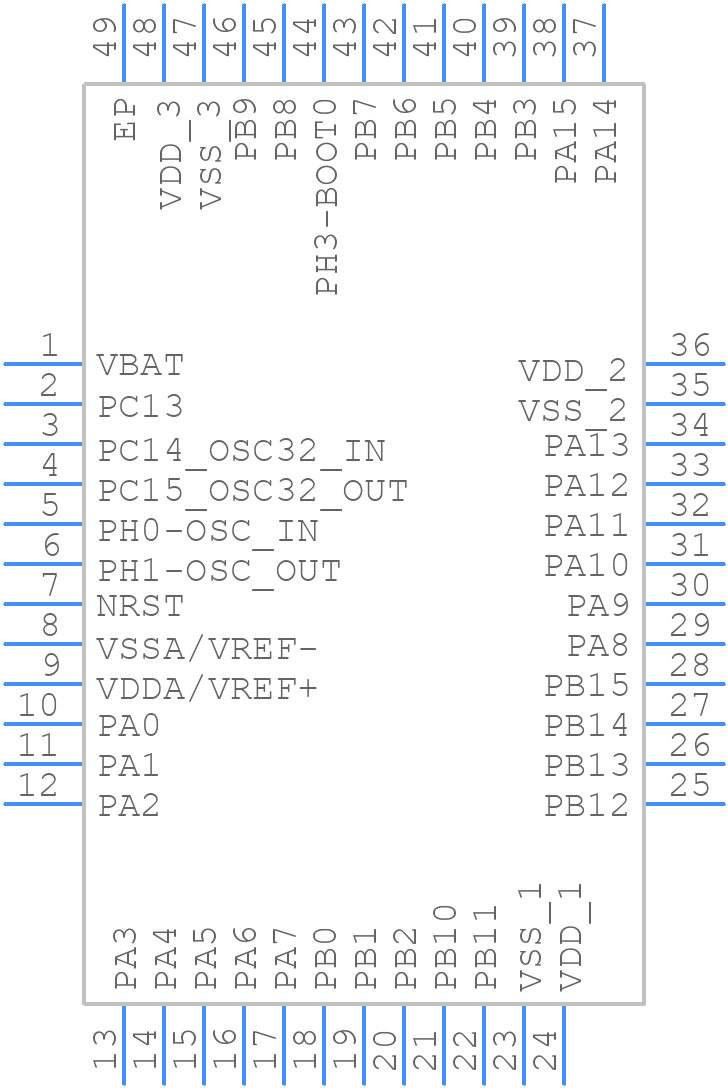

STM32L562CEU6TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32L562CEU6TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - STM32L562CEU6TR
click to zoom
3D Models
STM32L562CEU6TR - STMicroelectronics - 3D model - Quad Flat No-Lead - STM32L562CEU6TR
click to zoom

STM32L562CEU6TR Details

  • Manufacturer Part Number:

    STM32L562CEU6TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UFQFN-48

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    CORTEX-M33

  • Clock Frequency-Max:

    48 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    14

  • Number of I/O Lines:

    38

  • Number of Serial I/Os:

    15

  • Number of Terminals:

    48

  • Number of Timers:

    14

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (words):

    262144

  • ROM (words):

    524288

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.6 mm

  • Speed:

    110 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC
