STM32MP131DAE7 - STMicroelectronics

Description: Arm® Cortex®-A7 up to 1 GHz, 1×ETH, 1×ADC, 24 timers, audio

Download STM32MP131DAE7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP131DAE7 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

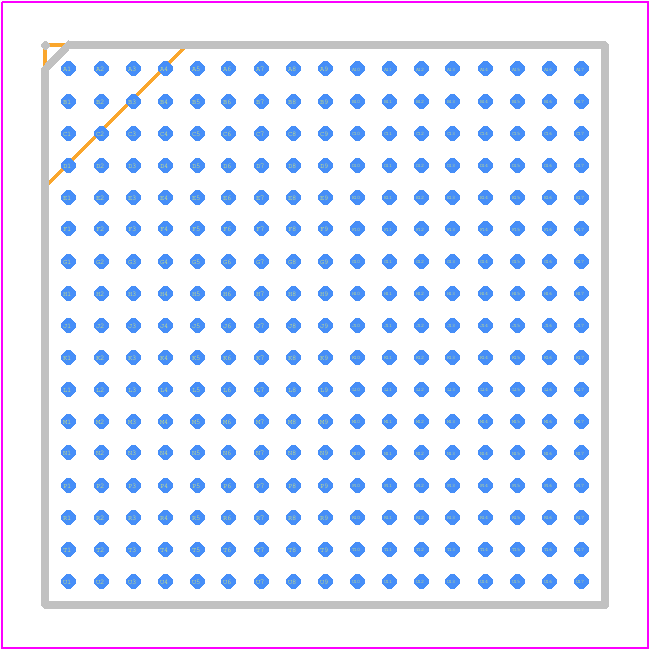

STM32MP131DAE7 - STMicroelectronics PCB footprint - BGA - BGA - LFBGA 14X14 289L PITCH 0.8 MM
click to zoom
3D Models
STM32MP131DAE7 - STMicroelectronics - 3D model - BGA - LFBGA 14X14 289L PITCH 0.8 MM
click to zoom

STM32MP131DAE7 Details

  • Manufacturer Part Number:

    STM32MP131DAE7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    48 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B289

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    56

  • Number of Serial I/Os:

    8

  • Number of Terminals:

    289

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA289,17X17,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    172032

  • Seated Height-Max:

    1.7 mm

  • Speed:

    1000 MHz

  • Supply Current-Max:

    268 mA

  • Supply Voltage-Max:

    1.38 V

  • Supply Voltage-Min:

    1.32 V

  • Supply Voltage-Nom:

    1.35 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

STM32MP131DAE7 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STM32MP131DAE7 is -40°C to 125°C (junction temperature). However, the recommended operating temperature range is -40°C to 85°C for commercial applications and -40°C to 105°C for industrial applications.
  • The clock tree for the STM32MP131DAE7 can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics. The CCT allows you to generate clock tree configurations based on your specific application requirements.
  • The maximum frequency for the Cortex-A7 core in the STM32MP131DAE7 is 650 MHz. However, the actual operating frequency may vary depending on the specific application and power consumption requirements.
  • To optimize power consumption for the STM32MP131DAE7, you can use various techniques such as clock gating, voltage scaling, and power gating. Additionally, STMicroelectronics provides a Power Consumption Estimation Tool (PCET) that can help you estimate and optimize power consumption for your specific application.
  • The STM32MP131DAE7 has a maximum of 1 GB of DDR3L RAM and 128 MB of internal flash memory. Additionally, it has a Quad-SPI interface that can be used to connect external flash memory devices.
