STM32MP133CAE3 Details

• Manufacturer Part Number:

  STM32MP133CAE3

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Philippines, Taiwan

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  9

• Address Bus Width:

  26

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  48 MHz

• External Data Bus Width:

  16

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B289

• Length:

  14 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  56

• Number of Serial I/Os:

  10

• Number of Terminals:

  289

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

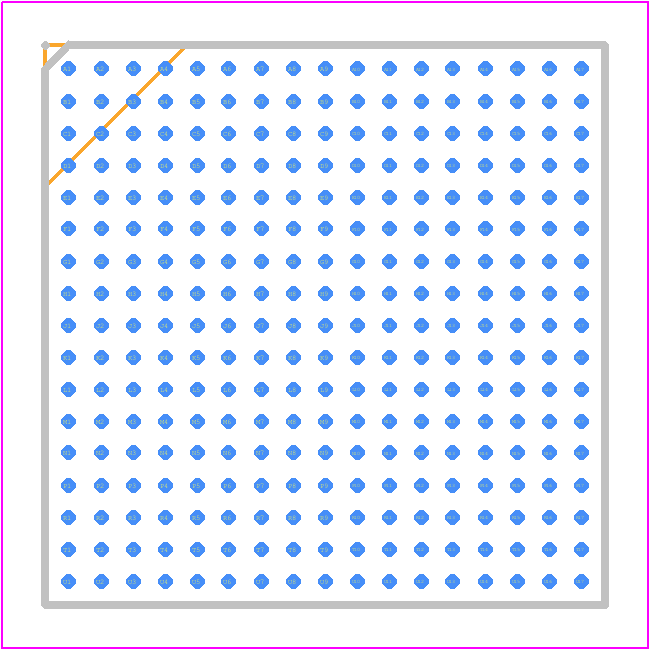

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA289,17X17,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• RAM (words):

  172032

• Seated Height-Max:

  1.7 mm

• Speed:

  650 MHz

• Supply Current-Max:

  239 mA

• Supply Voltage-Max:

  1.38 V

• Supply Voltage-Min:

  1.21 V

• Supply Voltage-Nom:

  1.25 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR, RISC
