STM32MP133FAF7 - STMicroelectronics

Description: Arm® Cortex®-A7 up to 1 GHz, 2×ETH, 2×CAN FD, 2×ADC, 24 timers, audio, crypto and adv. security

Download STM32MP133FAF7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP133FAF7 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

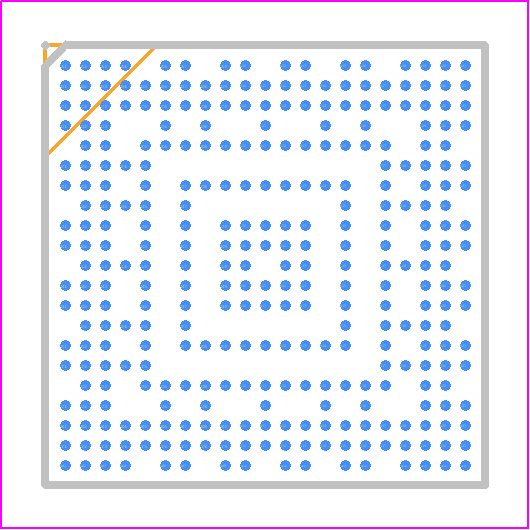

STM32MP133FAF7 - STMicroelectronics PCB footprint - BGA - BGA - TFBGA 11X11 320L PITCH 0.5 MM-3
click to zoom
3D Models
STM32MP133FAF7 - STMicroelectronics - 3D model - BGA - TFBGA 11X11 320L PITCH 0.5 MM-3
click to zoom

STM32MP133FAF7 Details

  • Manufacturer Part Number:

    STM32MP133FAF7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    48 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B320

  • Length:

    11 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    56

  • Number of Serial I/Os:

    10

  • Number of Terminals:

    320

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA320,21X21,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • RAM (words):

    172032

  • Seated Height-Max:

    1.2 mm

  • Speed:

    1000 MHz

  • Supply Current-Max:

    268 mA

  • Supply Voltage-Max:

    1.38 V

  • Supply Voltage-Min:

    1.32 V

  • Supply Voltage-Nom:

    1.35 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

STM32MP133FAF7 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STM32MP133FAF7 is -40°C to 125°C (junction temperature). However, the recommended operating temperature range is -40°C to 85°C for optimal performance and reliability.
  • The clock tree for the STM32MP133FAF7 can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics. The CCT allows you to generate clock tree configurations based on your specific application requirements.
  • The maximum frequency for the Cortex-A7 core in the STM32MP133FAF7 is 650 MHz. However, the actual operating frequency may be lower depending on the specific application and power consumption requirements.
  • To optimize power consumption for the STM32MP133FAF7, you can use various techniques such as clock gating, voltage scaling, and power gating. Additionally, STMicroelectronics provides a Power Consumption Estimation Tool (PCET) that can help you estimate and optimize power consumption for your specific application.
  • The STM32MP133FAF7 has a total of 1 GB of RAM, which includes 128 KB of Tightly-Coupled Memory (TCM) and 896 KB of System RAM.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32MP133FAF7 Overview

Use the download button to access the STM32MP133FAF7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microprocessors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
