STM32MP135CAE3 - STMicroelectronics

Description: Arm® Cortex®-A7 up to 1 GHz, LCD-TFT, camera interface, 2×ETH, 2×CAN FD, 2×ADC, 24 timers, audio, crypto and adv. security

Download STM32MP135CAE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP135CAE3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

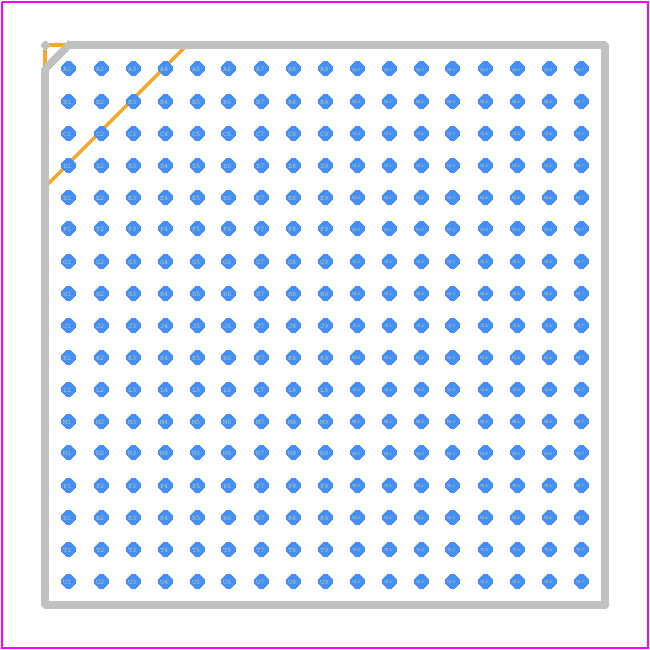

STM32MP135CAE3 - STMicroelectronics PCB footprint - BGA - BGA - LFBGA 14X14 289L PITCH 0.8 MM
click to zoom
3D Models
STM32MP135CAE3 - STMicroelectronics - 3D model - BGA - LFBGA 14X14 289L PITCH 0.8 MM
click to zoom

STM32MP135CAE3 Details

  • Manufacturer Part Number:

    STM32MP135CAE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    48 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B289

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    56

  • Number of Serial I/Os:

    10

  • Number of Terminals:

    289

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA289,17X17,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • RAM (words):

    172032

  • Seated Height-Max:

    1.7 mm

  • Speed:

    650 MHz

  • Supply Current-Max:

    239 mA

  • Supply Voltage-Max:

    1.38 V

  • Supply Voltage-Min:

    1.21 V

  • Supply Voltage-Nom:

    1.25 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

STM32MP135CAE3 Frequently Asked Questions (FAQs)

  • The STM32MP135CAE3 can operate from -40°C to 125°C (junction temperature), but the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
  • The boot mode can be configured using the BOOT pins (BOOT0 and BOOT1) and the user option bytes. The BOOT pins select the boot mode (e.g., boot from Flash, SRAM, or external memory), while the user option bytes configure the boot loader and boot device.
  • The Cortex-A7 core can run up to 650 MHz, but the maximum frequency depends on the specific use case, power consumption, and thermal considerations. It's recommended to consult the datasheet and application notes for guidance on clock frequency selection.
  • Yes, the STM32MP135CAE3 has a flexible external memory interface that supports various types of memory, including DDR3, DDR3L, LPDDR2, and QSPI Flash. The interface can be configured using the memory controller and the FlexBus interface.
  • The STM32MP135CAE3 has a built-in secure boot mechanism that uses the ROM bootloader and the TrustZone architecture. Secure boot can be implemented using the STM32CubeMX tool and the STM32TrustZone software package, which provide a secure boot loader and cryptographic libraries.
