STM32MP135DAF7 - STMicroelectronics

Description: Arm® Cortex®-A7 up to 1 GHz, LCD-TFT, camera interface, 2×ETH, 2×CAN FD, 2×ADC, 24 timers, audio

Download STM32MP135DAF7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP135DAF7 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

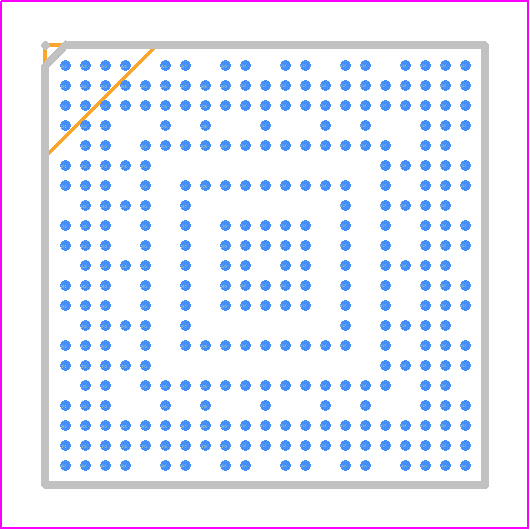

STM32MP135DAF7 - STMicroelectronics PCB footprint - BGA - BGA - TFBGA 11X11 320L PITCH 0.5 MM-4
click to zoom
3D Models
STM32MP135DAF7 - STMicroelectronics - 3D model - BGA - TFBGA 11X11 320L PITCH 0.5 MM-4
click to zoom

STM32MP135DAF7 Details

  • Manufacturer Part Number:

    STM32MP135DAF7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    48 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B320

  • Length:

    11 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    56

  • Number of Serial I/Os:

    10

  • Number of Terminals:

    320

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA320,21X21,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • RAM (words):

    172032

  • Seated Height-Max:

    1.2 mm

  • Speed:

    1000 MHz

  • Supply Current-Max:

    268 mA

  • Supply Voltage-Max:

    1.38 V

  • Supply Voltage-Min:

    1.32 V

  • Supply Voltage-Nom:

    1.35 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

STM32MP135DAF7 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STM32MP135DAF7 is -40°C to 125°C (junction temperature). However, the recommended operating temperature range is -40°C to 85°C for commercial applications and -40°C to 105°C for industrial applications.
  • The clock tree for the STM32MP135DAF7 can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics. The tool allows you to select the clock sources, configure the clock dividers, and generate the clock configuration code for your application.
  • The maximum frequency for the Cortex-A7 core in the STM32MP135DAF7 is 650 MHz. However, the actual frequency may vary depending on the application and the power consumption requirements.
  • To optimize power consumption for the STM32MP135DAF7, you can use the Power Consumption Optimization (PCO) tool provided by STMicroelectronics. The tool allows you to analyze the power consumption of your application and provides recommendations for optimization. Additionally, you can use techniques such as clock gating, voltage scaling, and power gating to reduce power consumption.
  • The STM32MP135DAF7 has a total of 1 GB of RAM, which includes 128 KB of Tightly-Coupled Memory (TCM) and 896 KB of System RAM.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32MP135DAF7 Overview

Use the download button to access the STM32MP135DAF7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microprocessors
