STM32MP135FAE7 - STMicroelectronics

Description: Arm® Cortex®-A7 up to 1 GHz, LCD-TFT, camera interface, 2×ETH, 2×CAN FD, 2×ADC, 24 timers, audio, crypto and adv. security

Download STM32MP135FAE7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP135FAE7 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

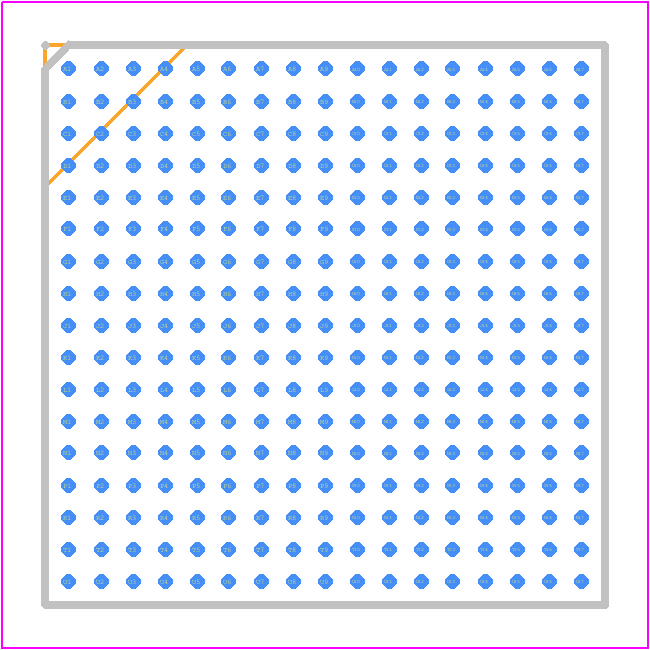

STM32MP135FAE7 - STMicroelectronics PCB footprint - BGA - BGA - LFBGA 14X14 289L PITCH 0.8 MM
click to zoom
3D Models
STM32MP135FAE7 - STMicroelectronics - 3D model - BGA - LFBGA 14X14 289L PITCH 0.8 MM
click to zoom

STM32MP135FAE7 Details

  • Manufacturer Part Number:

    STM32MP135FAE7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    48 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B289

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    56

  • Number of Serial I/Os:

    10

  • Number of Terminals:

    289

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA289,17X17,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • RAM (words):

    172032

  • Seated Height-Max:

    1.7 mm

  • Speed:

    1000 MHz

  • Supply Current-Max:

    268 mA

  • Supply Voltage-Max:

    1.38 V

  • Supply Voltage-Min:

    1.32 V

  • Supply Voltage-Nom:

    1.35 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

STM32MP135FAE7 Frequently Asked Questions (FAQs)

  • The STM32MP135FAE7 can operate from -40°C to 125°C (junction temperature), but the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
  • The boot mode for the STM32MP135FAE7 can be configured using the BOOT0 and BOOT1 pins. BOOT0 is used to select between the internal boot loader and an external boot loader, while BOOT1 is used to select the boot device (e.g., flash, SD card, etc.).
  • The maximum clock frequency for the STM32MP135FAE7 is 650 MHz, but this can be adjusted using the clock configuration registers to optimize power consumption and performance.
  • The STM32MP135FAE7 has a TrustZone-enabled Arm Cortex-A7 processor, which allows for secure boot, secure firmware updates, and secure data storage. To use these features, you need to configure the TrustZone registers and use the TrustZone-enabled software development kit (SDK) provided by STMicroelectronics.
  • The power consumption of the STM32MP135FAE7 depends on the operating frequency, voltage, and peripherals used. According to the datasheet, the typical power consumption is around 250 mW at 650 MHz, but this can be optimized using power-saving modes and clock gating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32MP135FAE7 Overview

Use the download button to access the STM32MP135FAE7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microprocessors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
